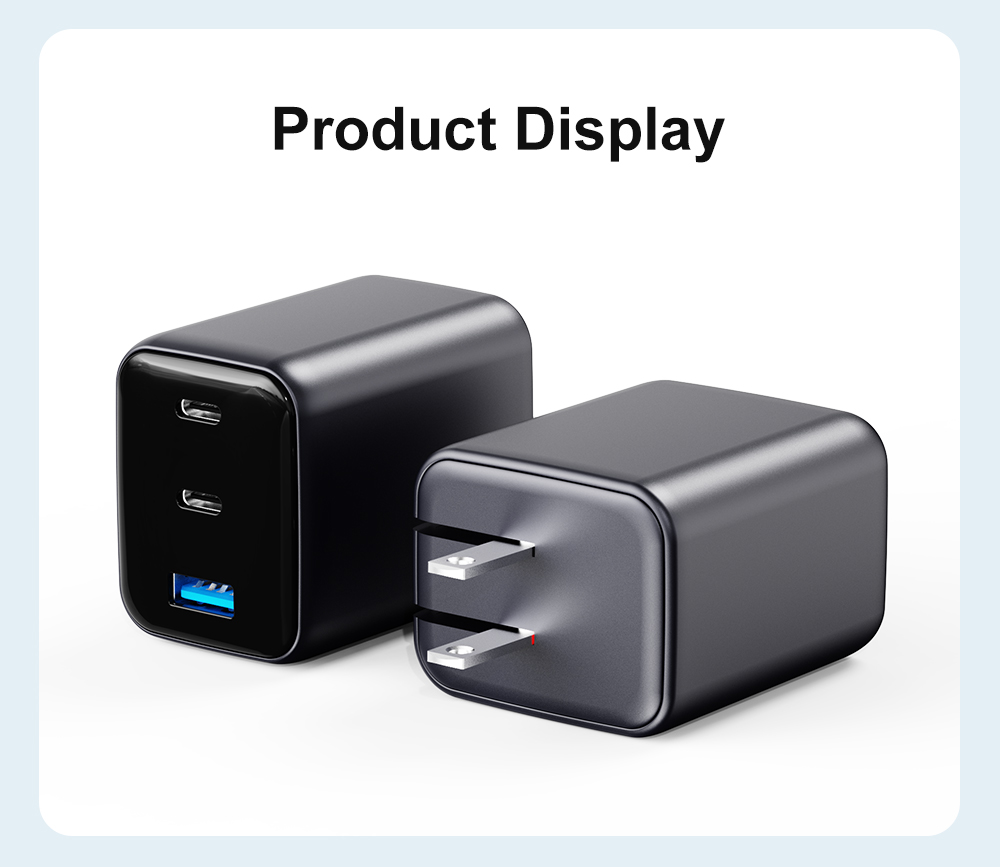

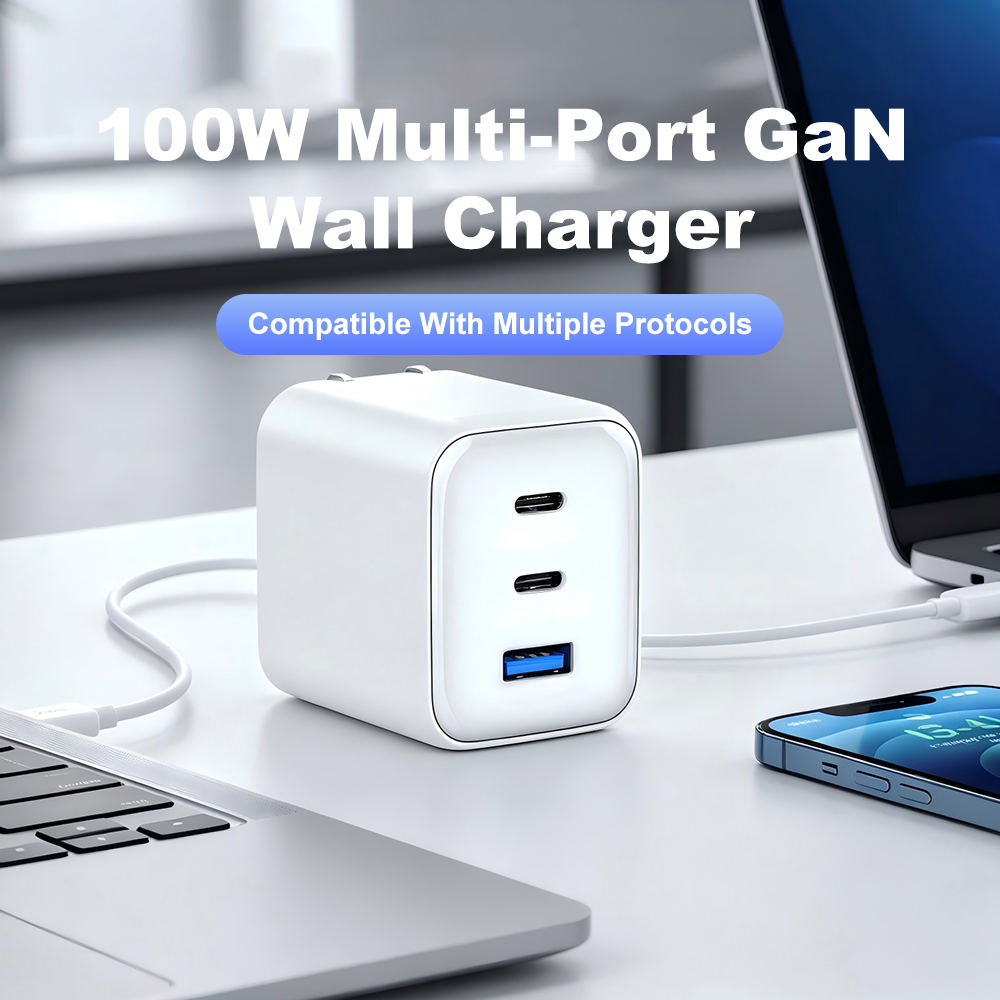

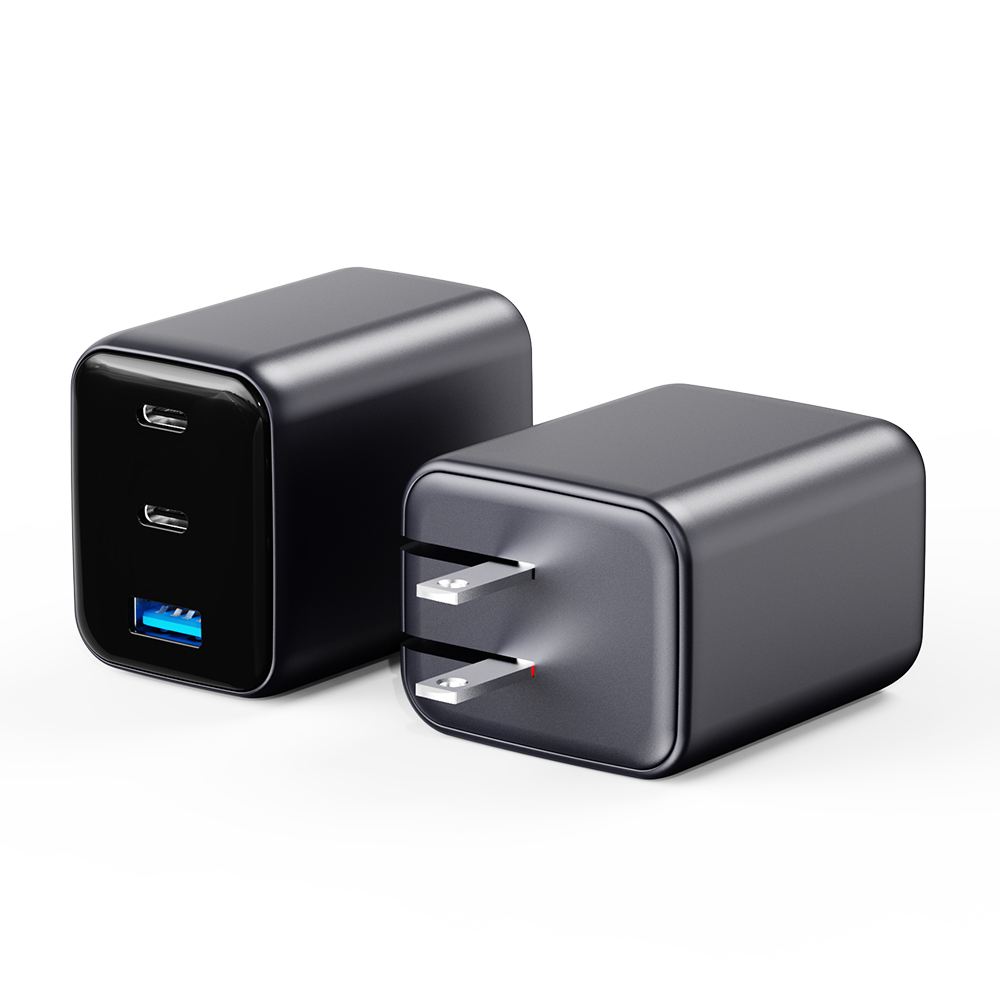

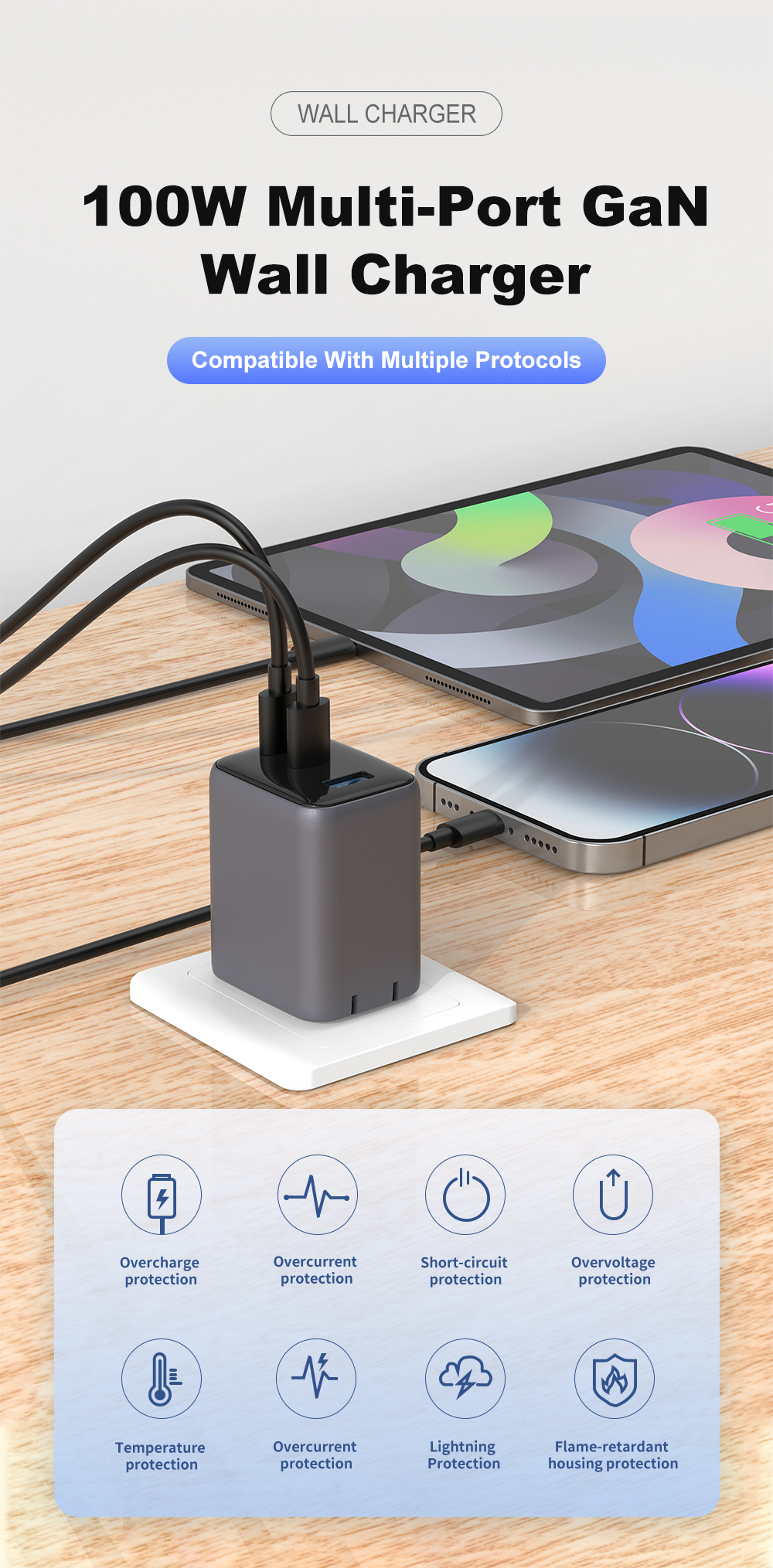

100W 2C1A GaN Charger with Custom Panel
100W 2C1A GaN Charger with Custom Panel
Product Overview
Designed for e-commerce bundles, travel accessory sets and daily charging, the 100W 2C1A GaN Charger with Custom Panel delivers 100W of maximum output through 3 ports (2 × USB-C + 1 × USB-A). It negotiates power through PD3.0 / PPS / AVS / QC3.0, so phones, tablets and laptops draw their rated current. Its flame-retardant PC housing is sealed and compact, leaving adjacent wall sockets free.
Core Advantages
- Universal AC 100–240V 50/60Hz input for worldwide SKUs
- Multi-layer protection: OVP / OCP / OTP / SCP
- Port configuration: 2 × USB-C + 1 × USB-A
- 100W maximum output
- Plug options: US / EU / UK
- Protocols: PD3.0 / PPS / AVS / QC3.0
Applications

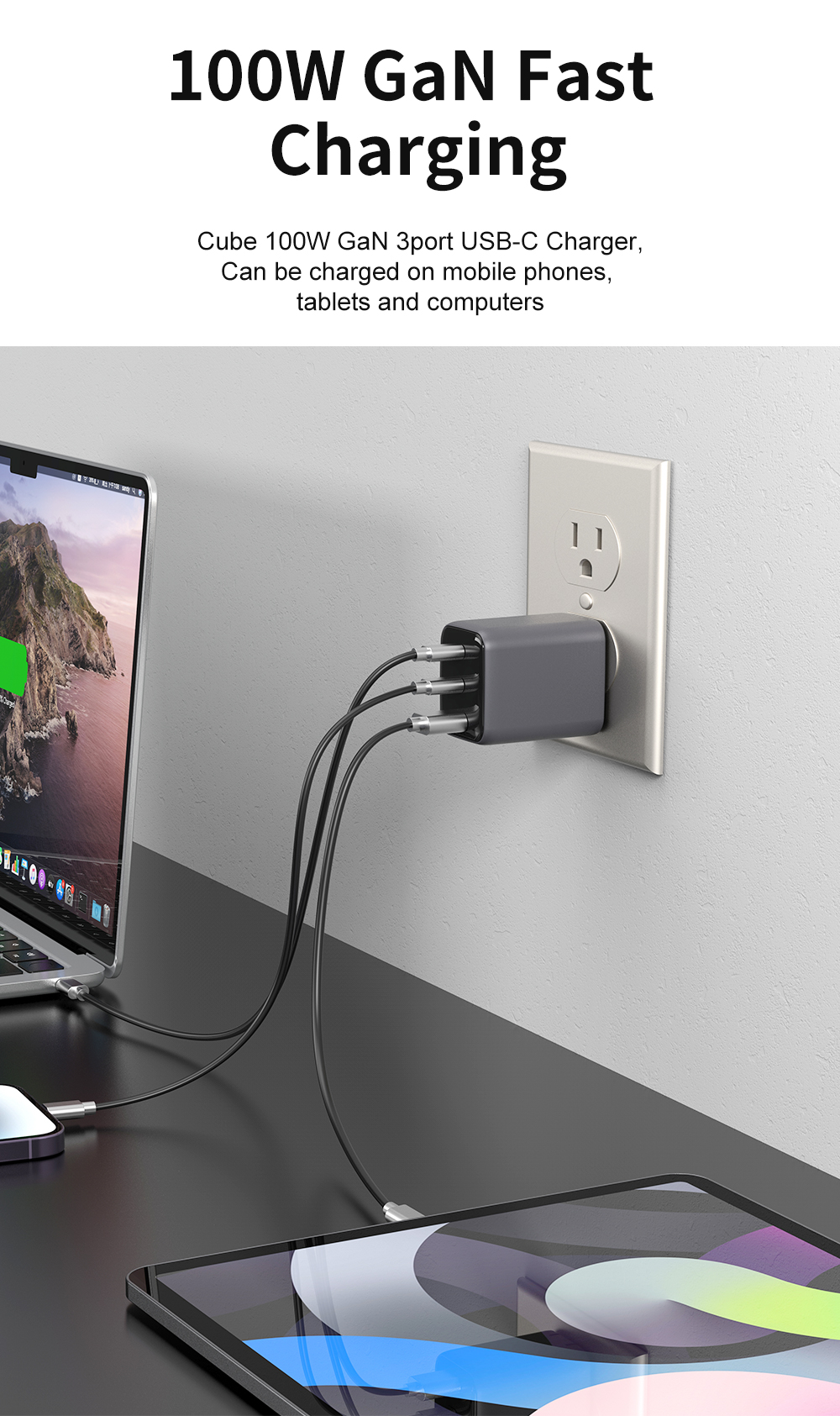

- Smartphones, tablets and USB-C laptops within the rated wattage
- International travel with US / EU / UK plug variants
- Desk charging at home and in the office
- Power banks and small portable electronics

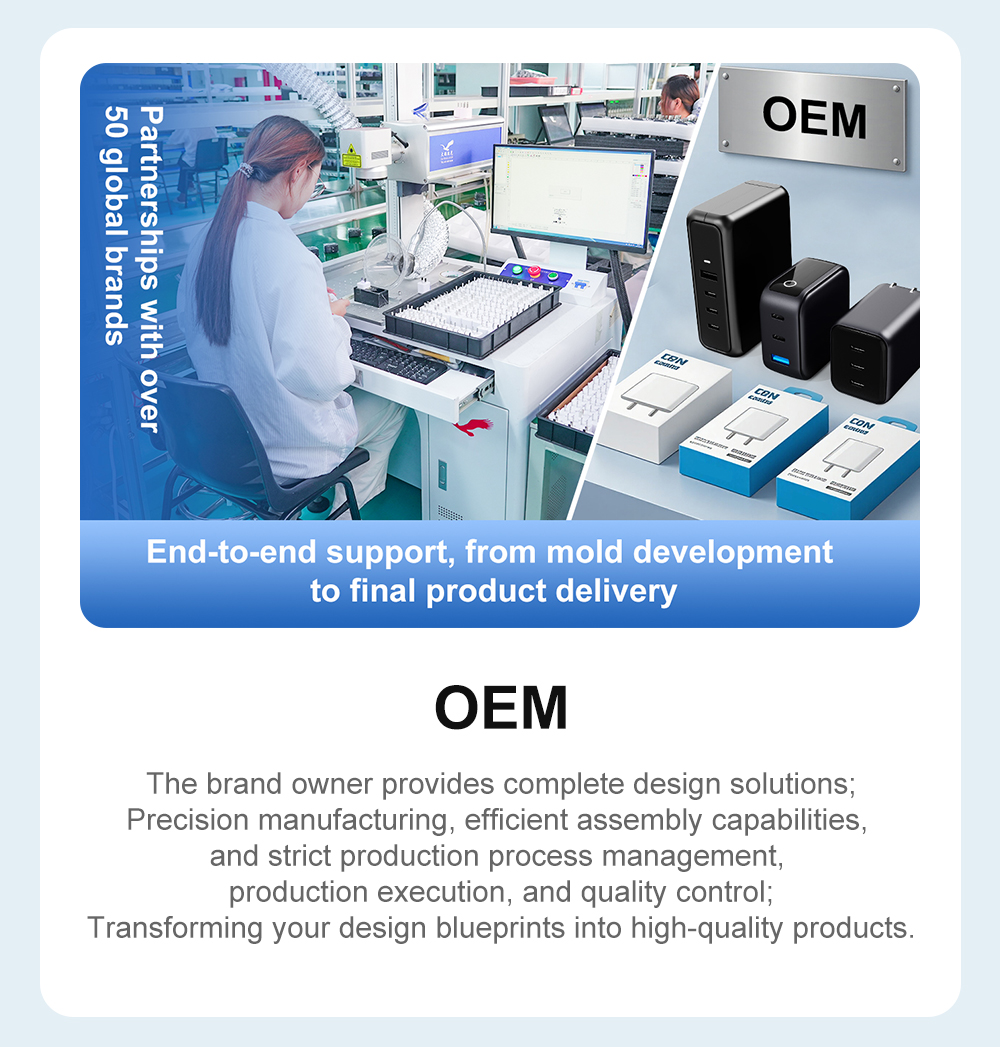

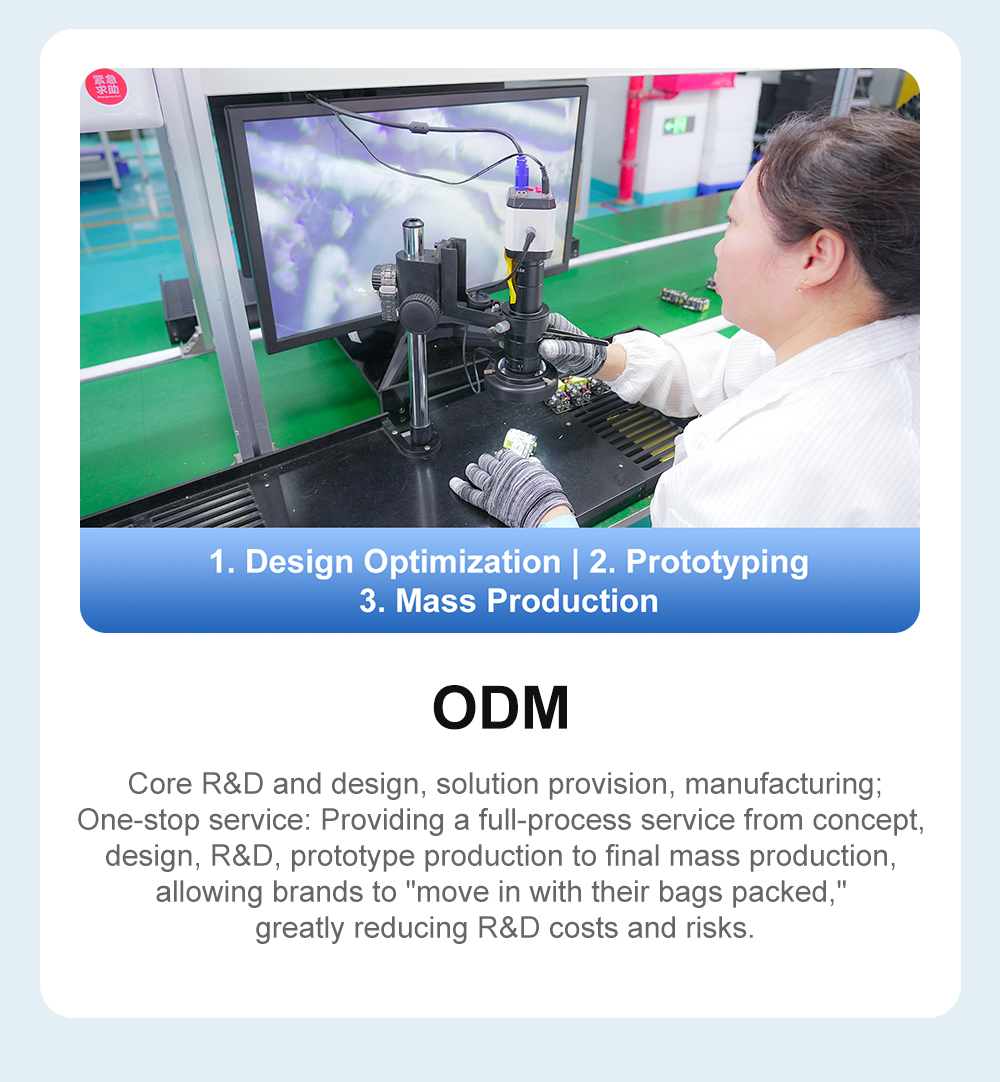

OEM/ODM support covers logo printing, custom packaging, housing colors and plug-type variants; the standard MOQ is 2,000 pcs per model.

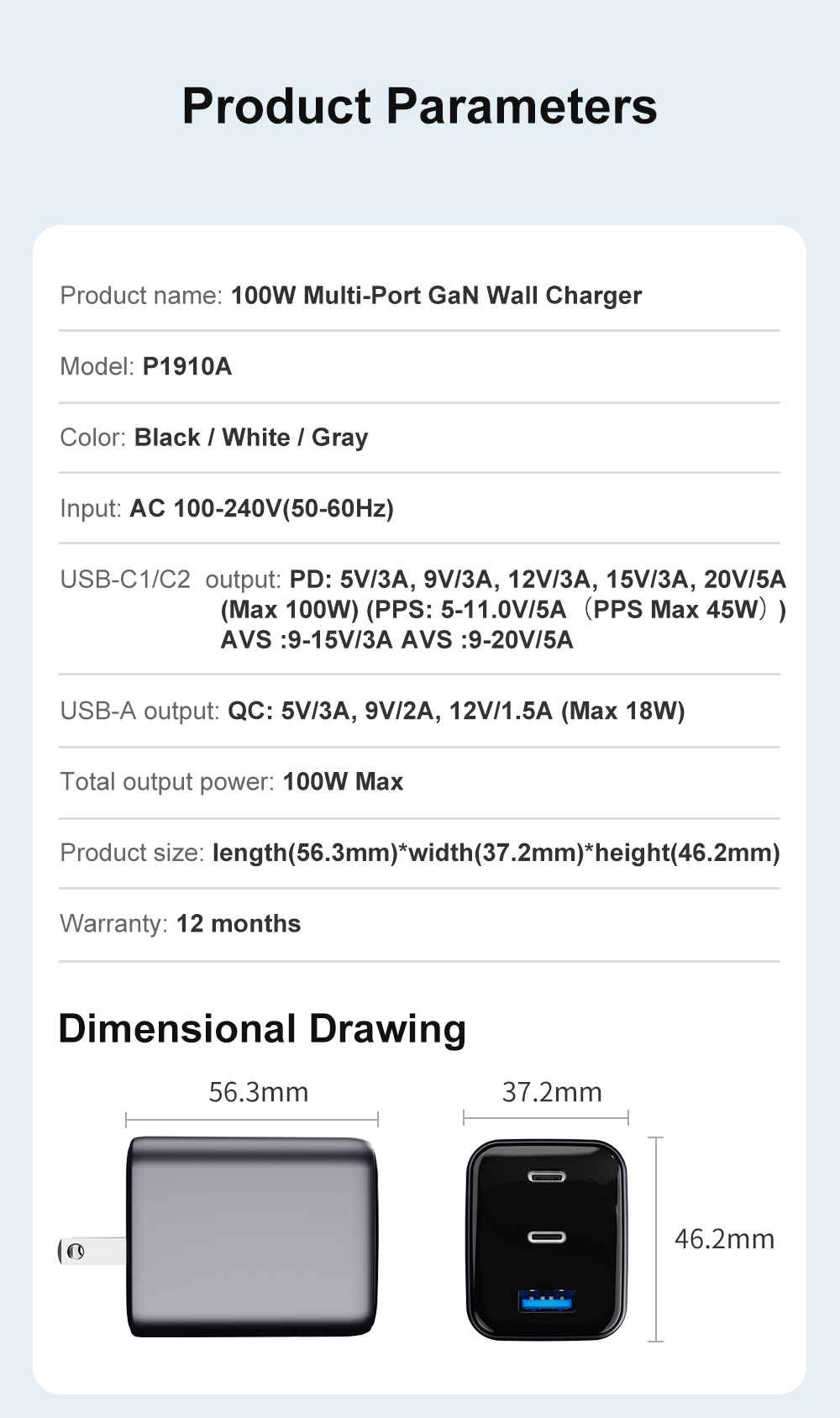

Technical Specifications
| Model No. | P1910A |
| Input | AC 100–240V, 50/60Hz |
| Output | C1 / C2 (each port): 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A (Max 100W); AVS1: 9–15V/3A; AVS2: 9–20V/5A USB-A: 5V/3A, 9V/2A, 12V/1.5A (Max 18W) |
| Ports | 2 × USB-C + 1 × USB-A |
| Protocols | PD3.0 / PPS / AVS / QC3.0 |
| Plug Type | US / EU / UK |

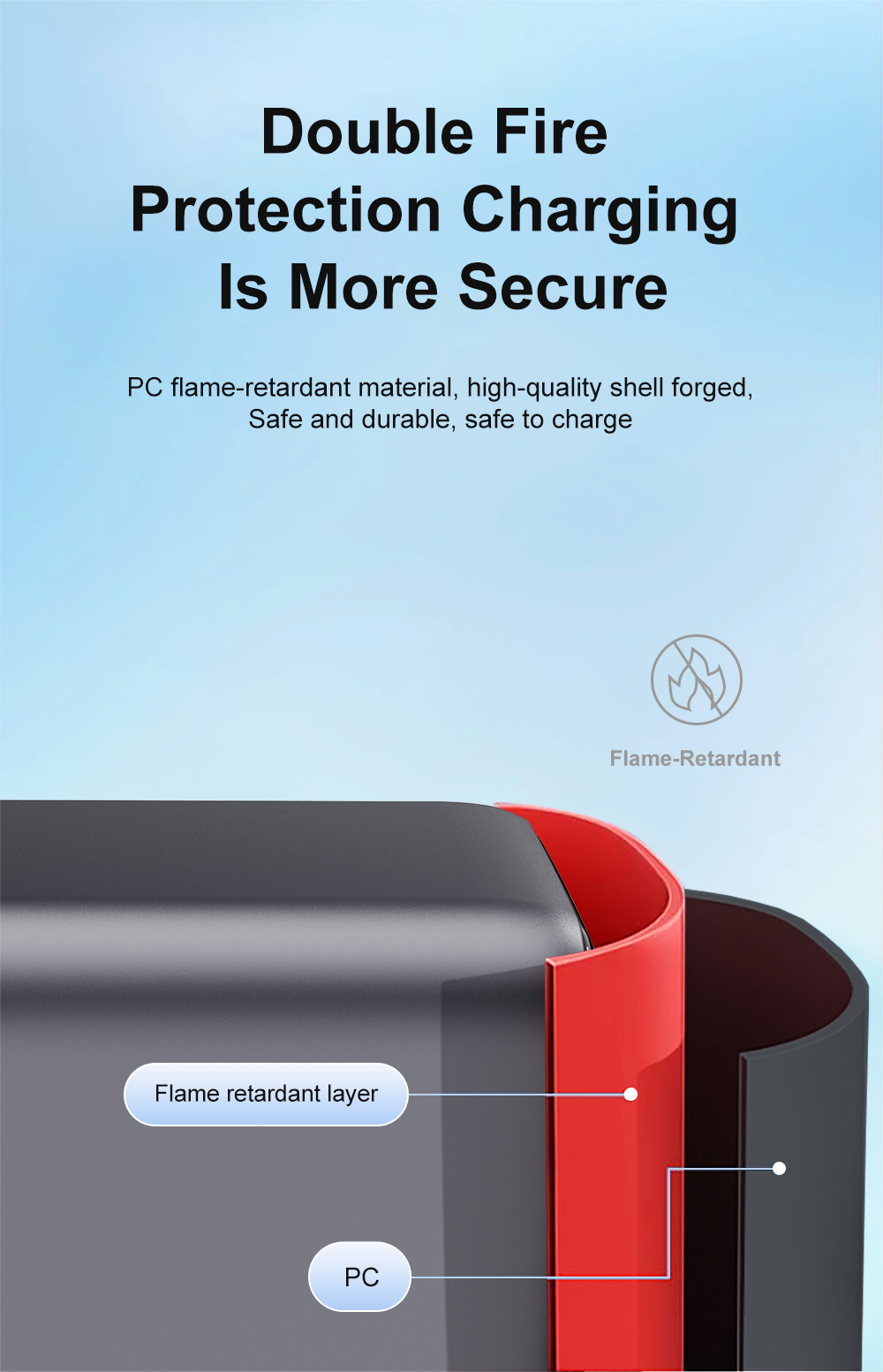

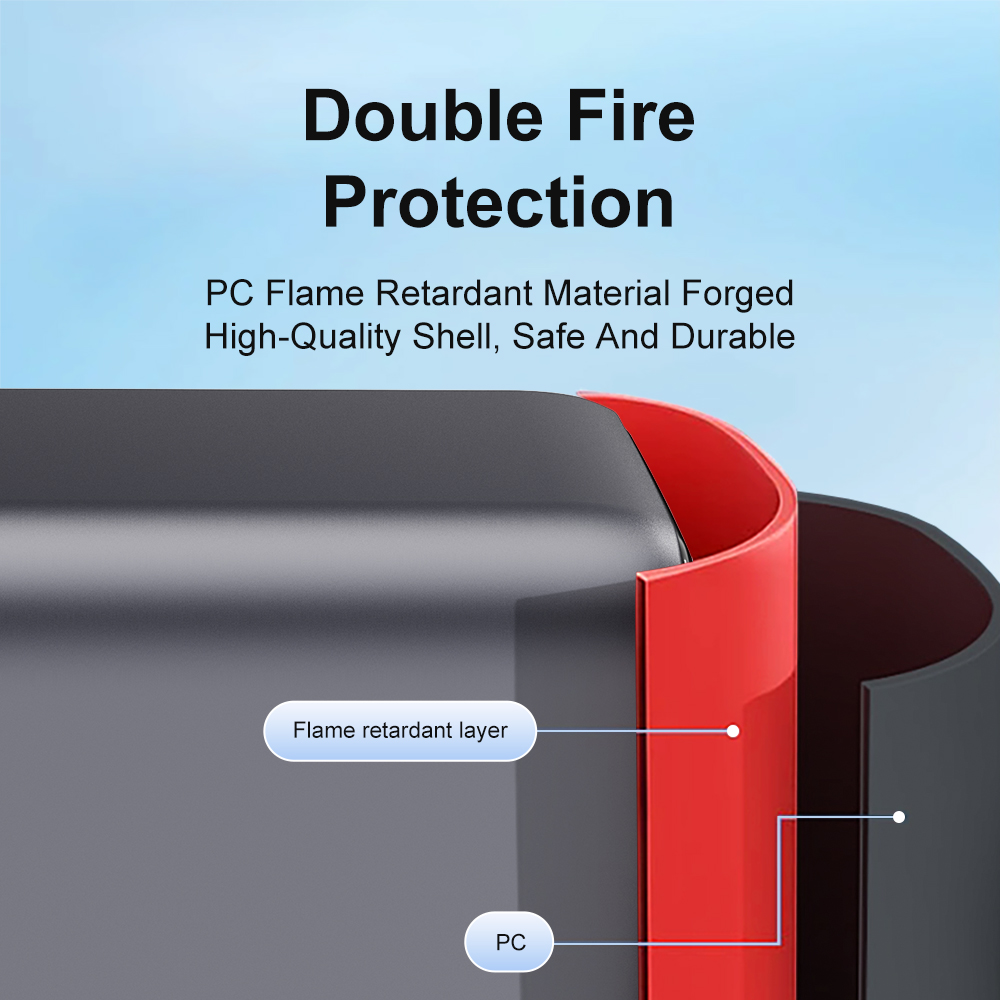

| Housing | Flame-retardant PC |
| Protection | OVP / OCP / OTP / SCP |
| Certifications | CE / UKCA / RoHS (EU) · FCC / ETL (US) · PSE (JP) · SAA / RCM (AU) · KC (KR) |
| MOQ | 2,000 pcs per model |
| OEM/ODM | Logo printing, packaging, custom panel & plug types |
