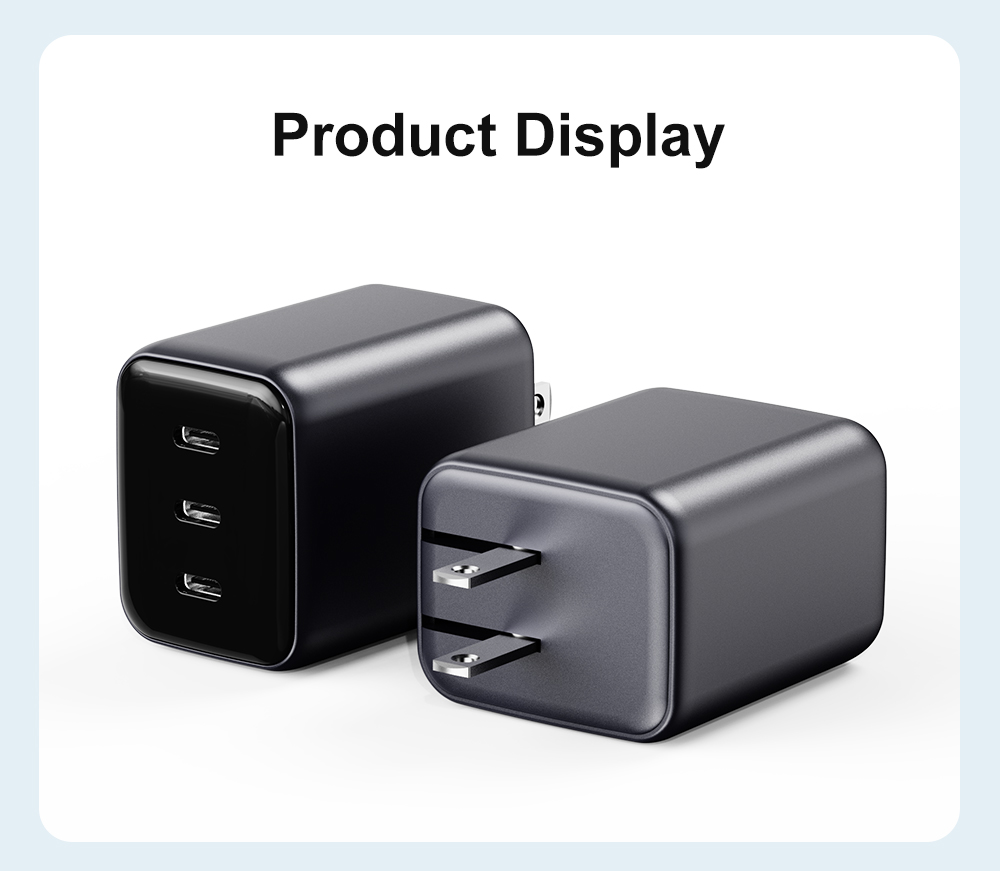

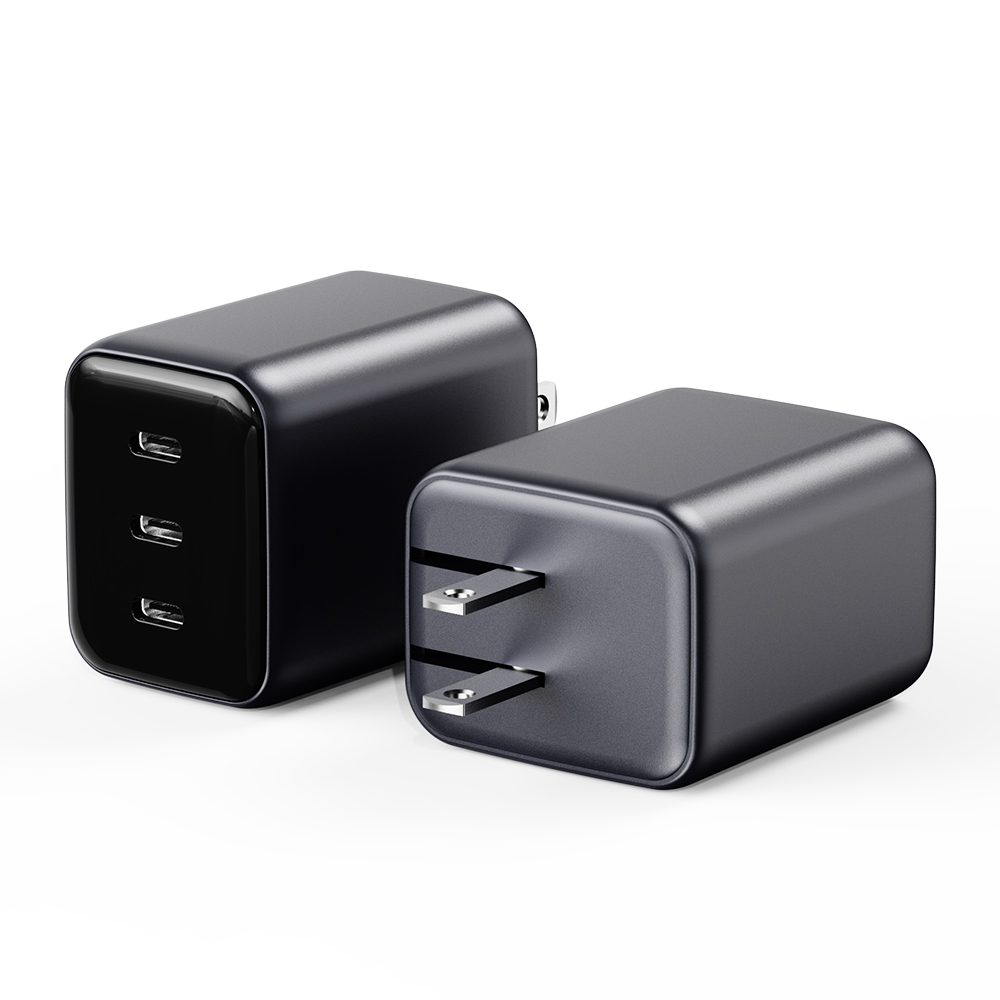

100W GaN Charger with Replaceable Front Panel
100W GaN Charger with Replaceable Front Panel
Product Overview
The 100W GaN Charger with Replaceable Front Panel pairs 100W of charging power with 3 ports (3 × USB-C), a practical fit for e-commerce bundles, travel accessory sets and daily charging. Protocol support spans PD3.0 / PPS / QC3.0, keeping fast-charge handshakes reliable across device brands. Gallium-nitride switching keeps the 37.22 × 46.2 × 57.2 mm housing cool under continuous load.
Feature Summary

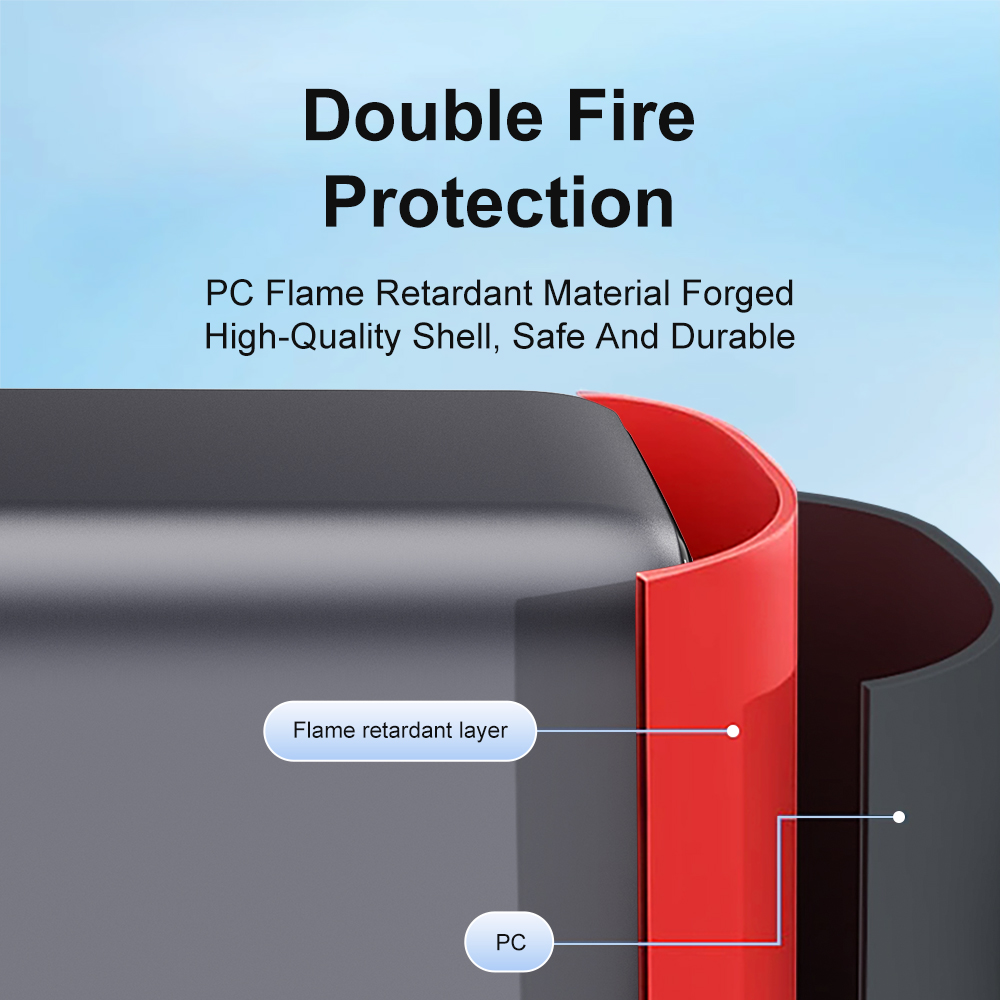

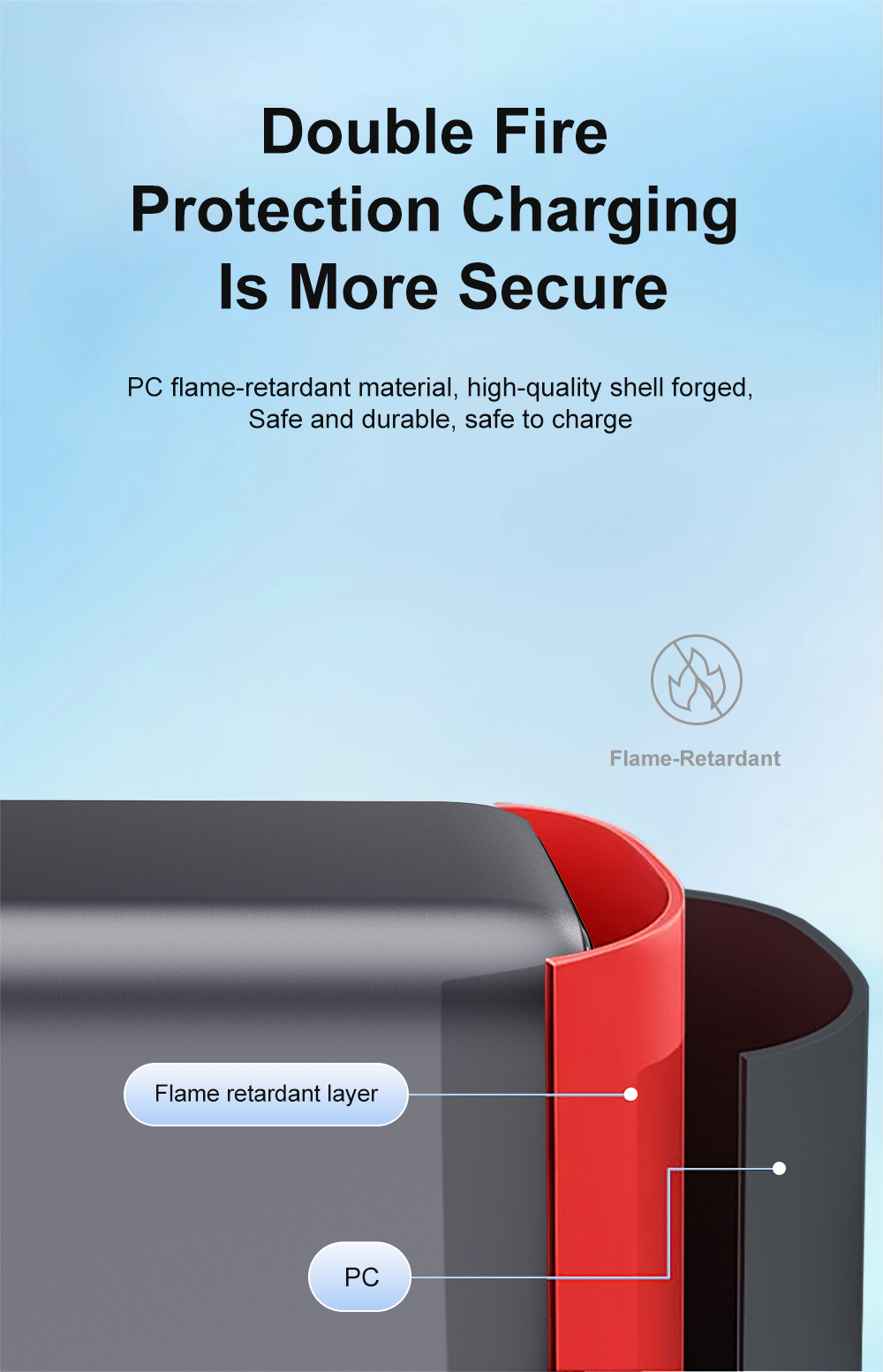

- Housing: Flame-retardant PC, 37.22 × 46.2 × 57.2 mm
- Plug options: Interchangeable AC plug (US / EU / UK / AU)
- Universal AC 100–240V 50/60Hz input for worldwide SKUs
- Multi-layer protection: OVP / OCP / OTP / SCP
- Protocols: PD3.0 / PPS / QC3.0
- 100W maximum output
- Port configuration: 3 × USB-C
Applications
- Smartphones, tablets and USB-C laptops within the rated wattage
- International travel with Interchangeable AC plug (US / EU / UK / AU) plug variants
- Desk charging at home and in the office
- Power banks and small portable electronics
OEM/ODM support covers logo printing, custom packaging, housing colors and plug-type variants; the standard MOQ is 2,000 pcs per model.

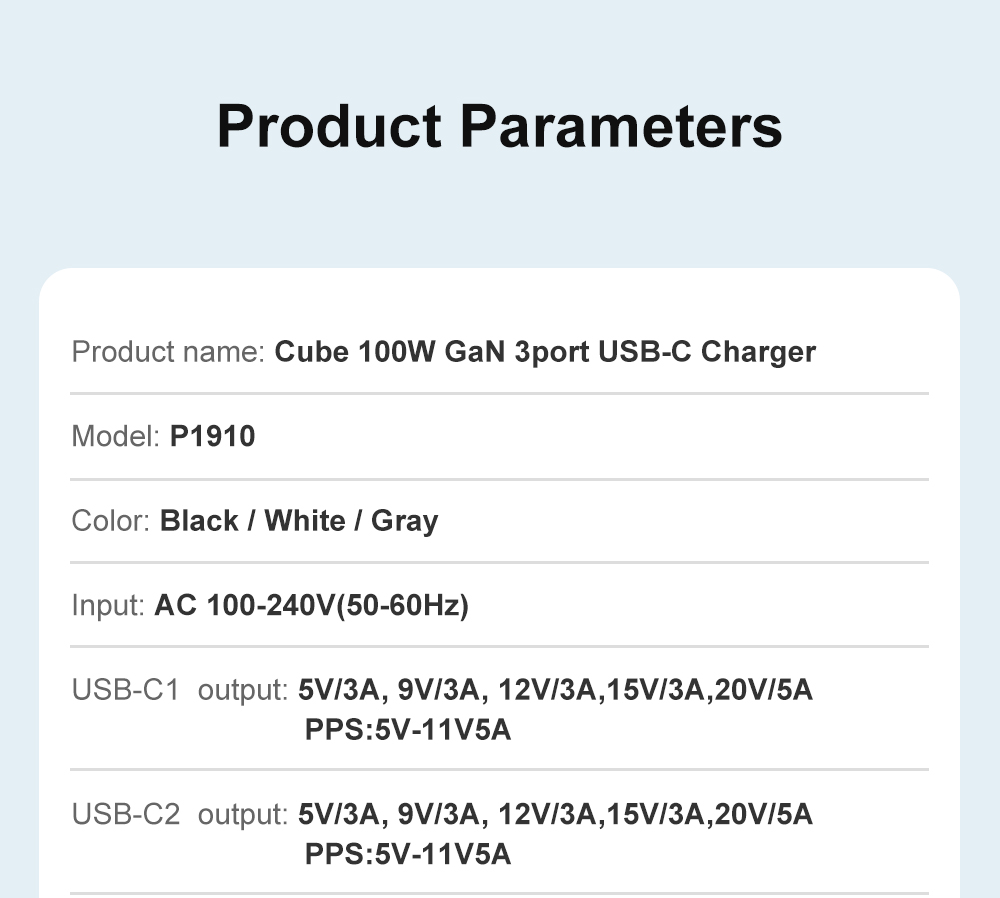

Technical Specifications
| Model No. | P1910 |
| Input | AC 100–240V, 50/60Hz |
| Output | C1 / C2 / C3 (each port): 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A; PPS: 5–11V/5A |
| Multi-Port Distribution | C1+C2/C3: 67W+30W | C2+C3: 12W+12W | All ports: 65W+12W+12W |
| Ports | 3 × USB-C |
| Protocols | PD3.0 / PPS / QC3.0 |
| Plug Type | Interchangeable AC plug (US / EU / UK / AU) |

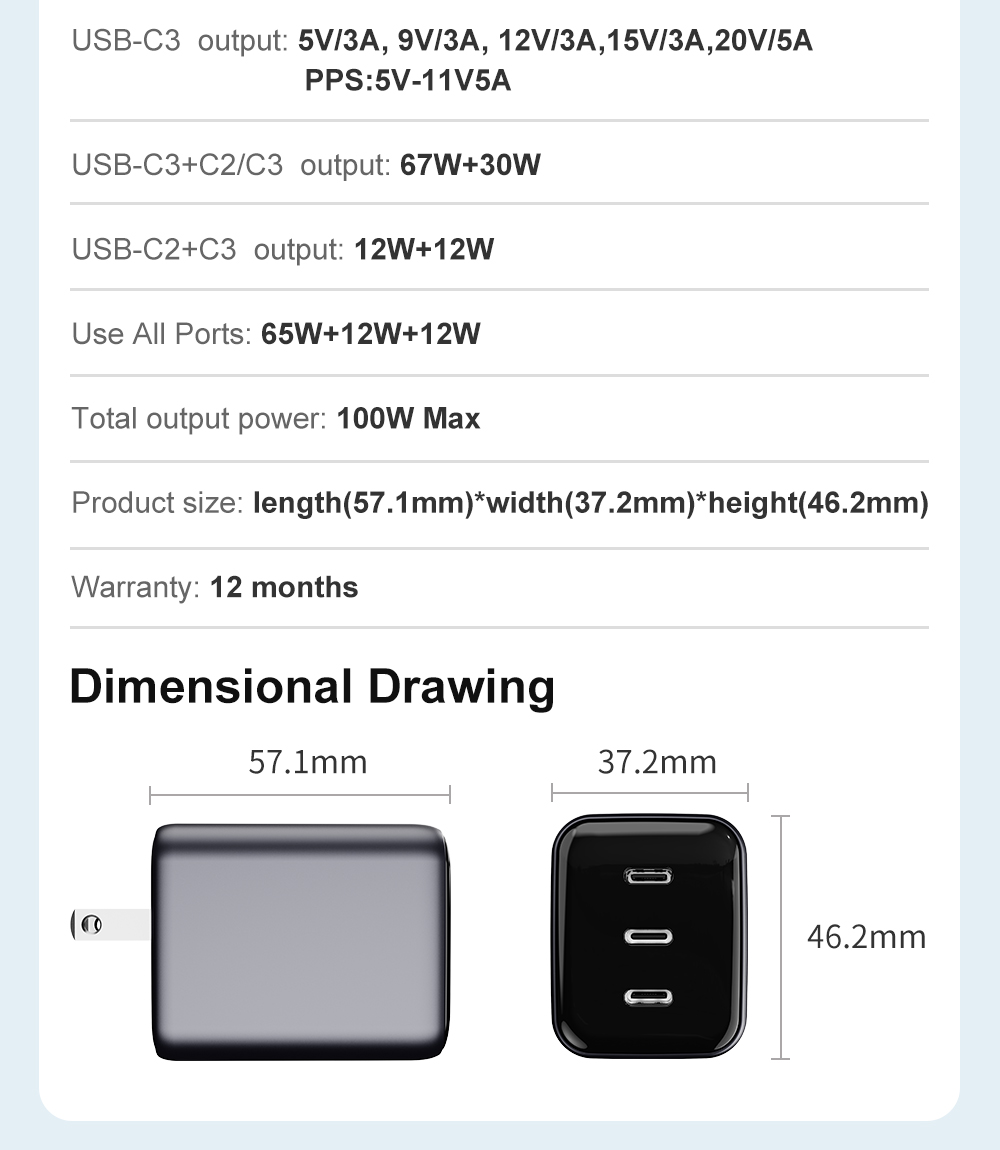

| Dimensions | 37.22 × 46.2 × 57.2 mm |
| Housing | Flame-retardant PC |
| Protection | OVP / OCP / OTP / SCP |
| Certifications | CE / UKCA / RoHS (EU) · FCC / ETL (US) · PSE (JP) · SAA / RCM (AU) · KC (KR) |
| MOQ | 2,000 pcs per model |
| OEM/ODM | Logo printing, packaging, custom panel & plug types |
