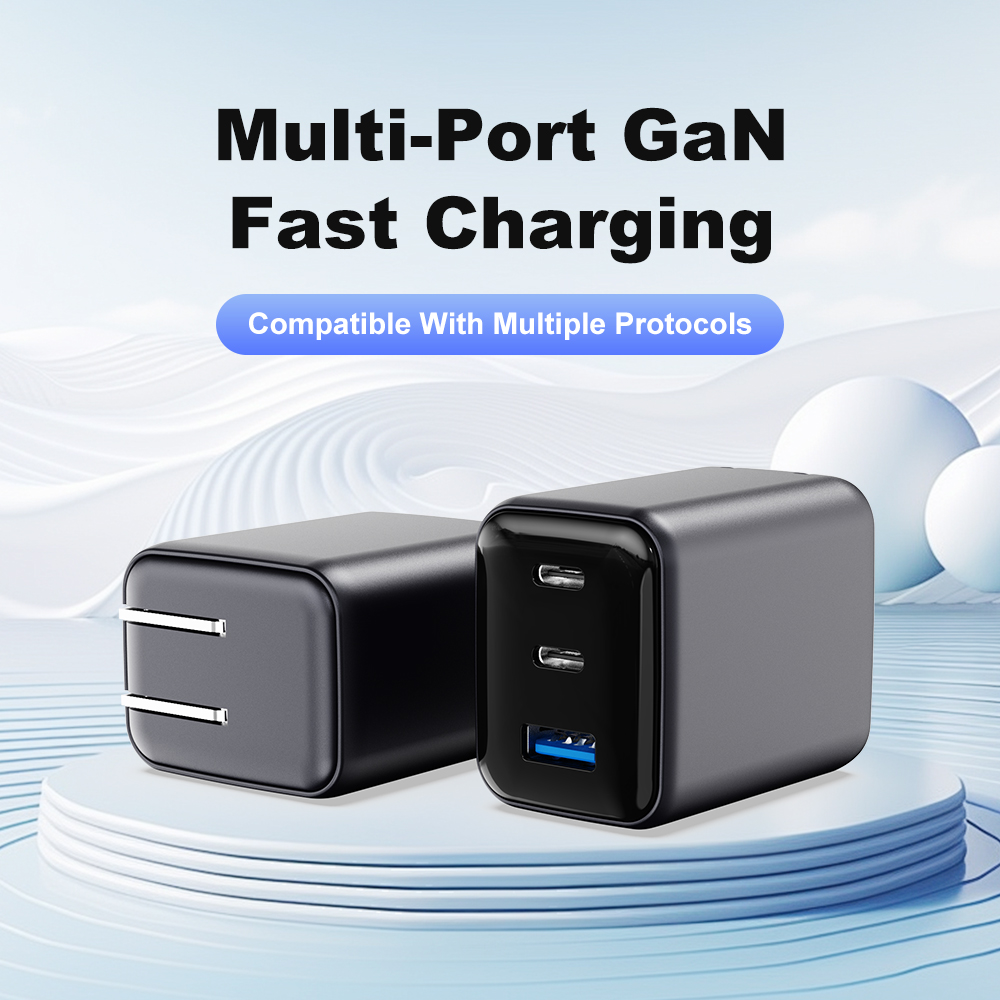

70W GaN Charger with Custom Color Panels
Product Overview
The 70W GaN Charger with Custom Color Panels is a 3 ports (2 × USB-C + 1 × USB-A) built for hotel amenities, co-working spaces and commuter bags. Charging profiles follow PD3.0 / PPS / AVS / QC3.0, matching each device's requested voltage and current. Its flame-retardant PC housing is sealed and compact, leaving adjacent wall sockets free.
Feature Summary

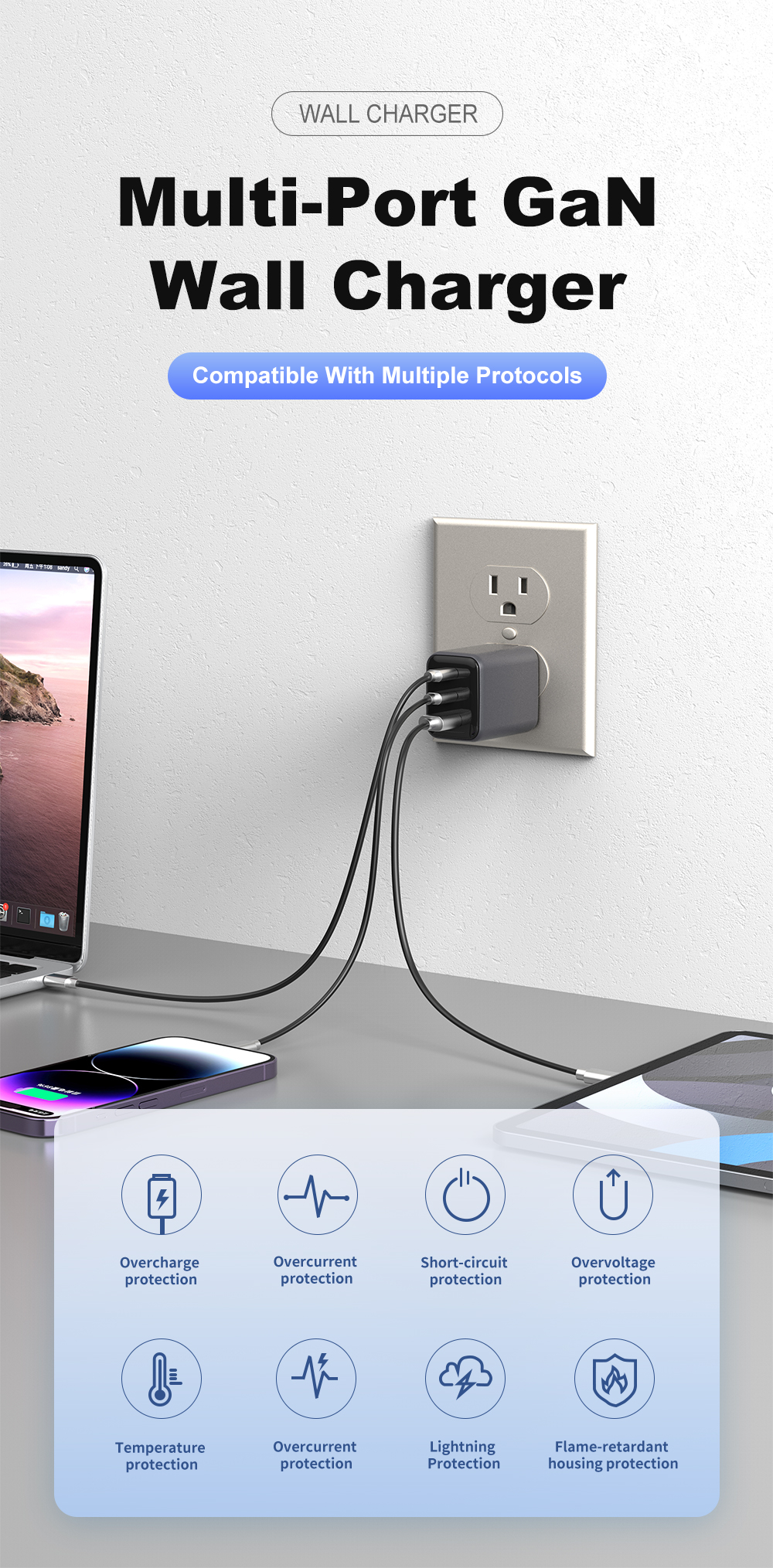

- Multi-layer protection: OVP / OCP / OTP / SCP
- Protocols: PD3.0 / PPS / AVS / QC3.0
- Universal AC 100–240V 50/60Hz input for worldwide SKUs
- Port configuration: 2 × USB-C + 1 × USB-A
- 70W maximum output
- Plug options: US / EU / UK
Applications

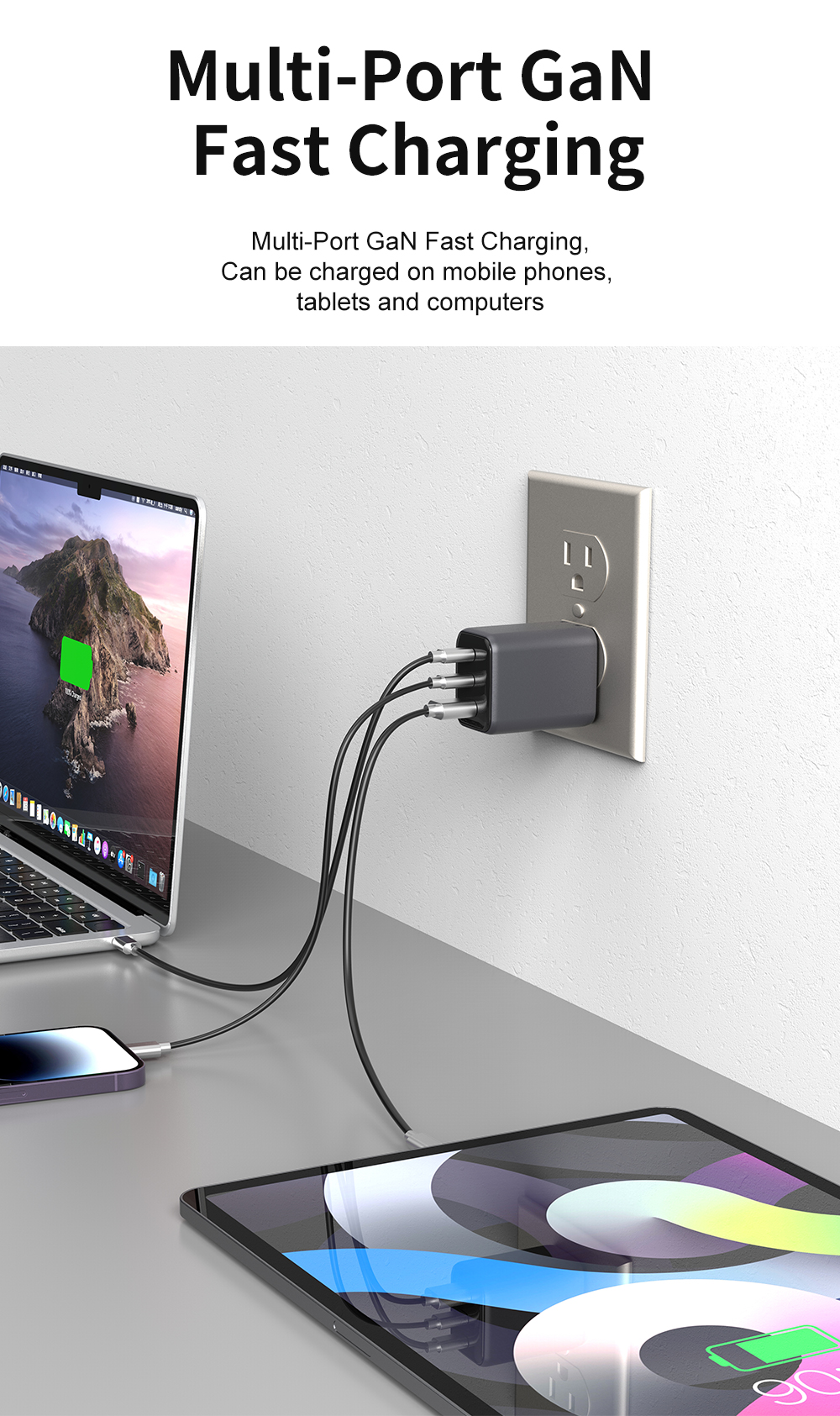

- Smartphones, tablets and USB-C laptops within the rated wattage
- International travel with US / EU / UK plug variants
- Desk charging at home and in the office
- Power banks and small portable electronics
OEM/ODM support covers logo printing, custom packaging, housing colors and plug-type variants; the standard MOQ is 3,000 pcs per model.

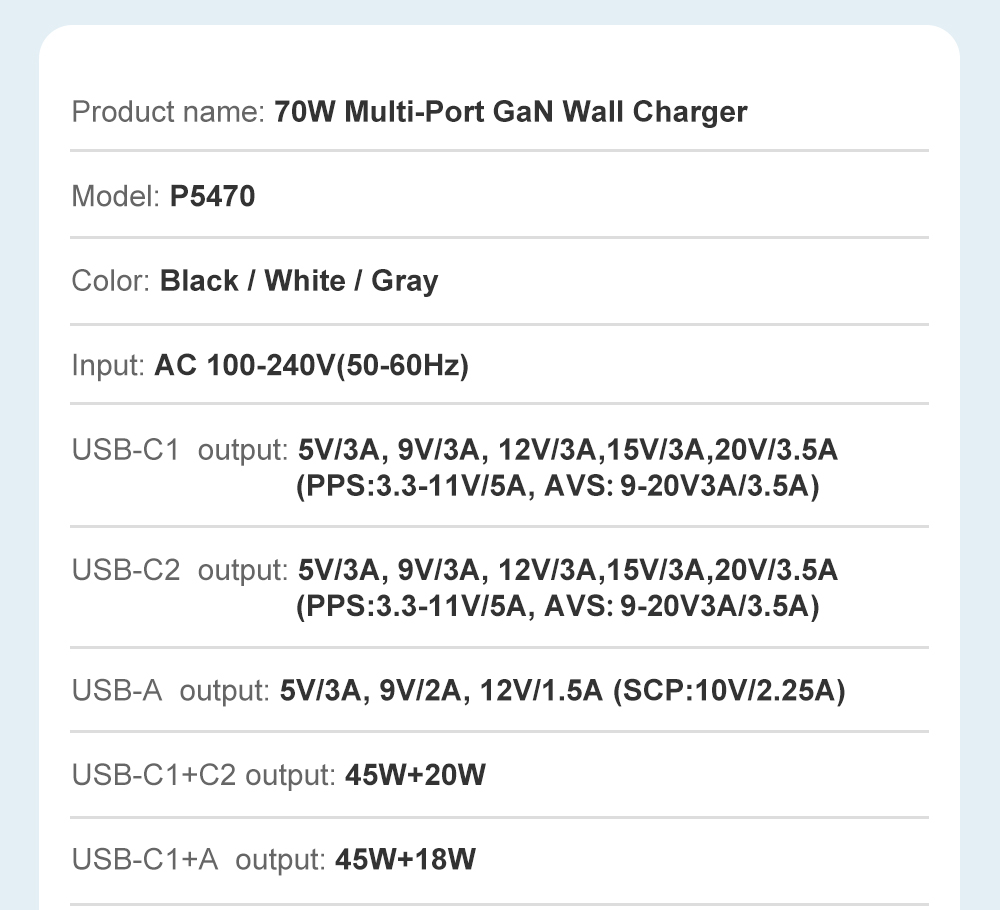

Technical Specifications
| Model No. | P5470 |
| Input | AC 100–240V, 50/60Hz |
| Output | C1 / C2 (each port): 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.5A (Max 70W); PPS: 3.3–11V/5A; AVS: 9–20V/3A (DPS 3.5A) USB-A: 5V/3A, 9V/2A, 12V/1.5A (Max 18W) |
| Ports | 2 × USB-C + 1 × USB-A |
| Protocols | PD3.0 / PPS / AVS / QC3.0 |
| Plug Type | US / EU / UK |

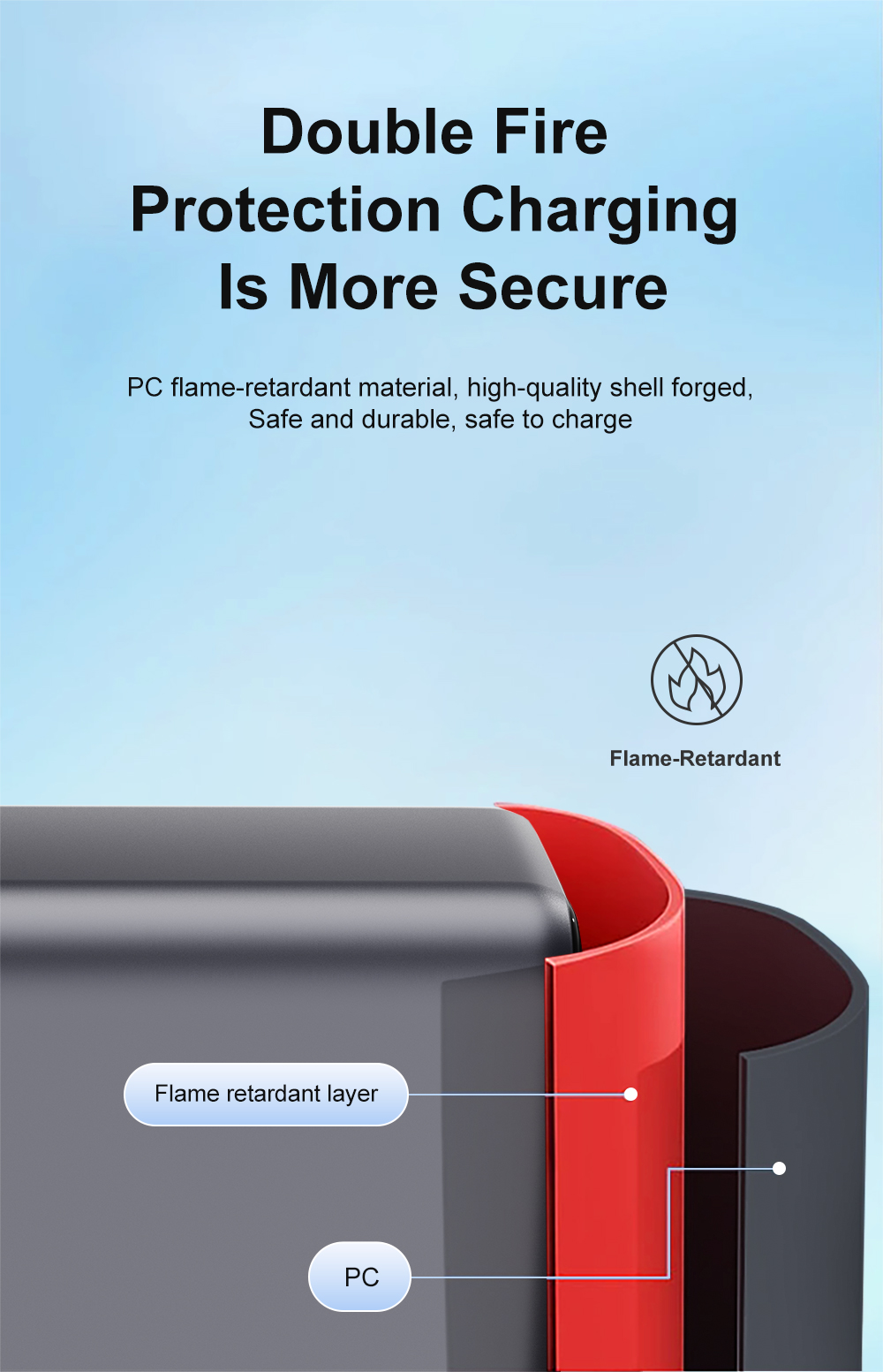

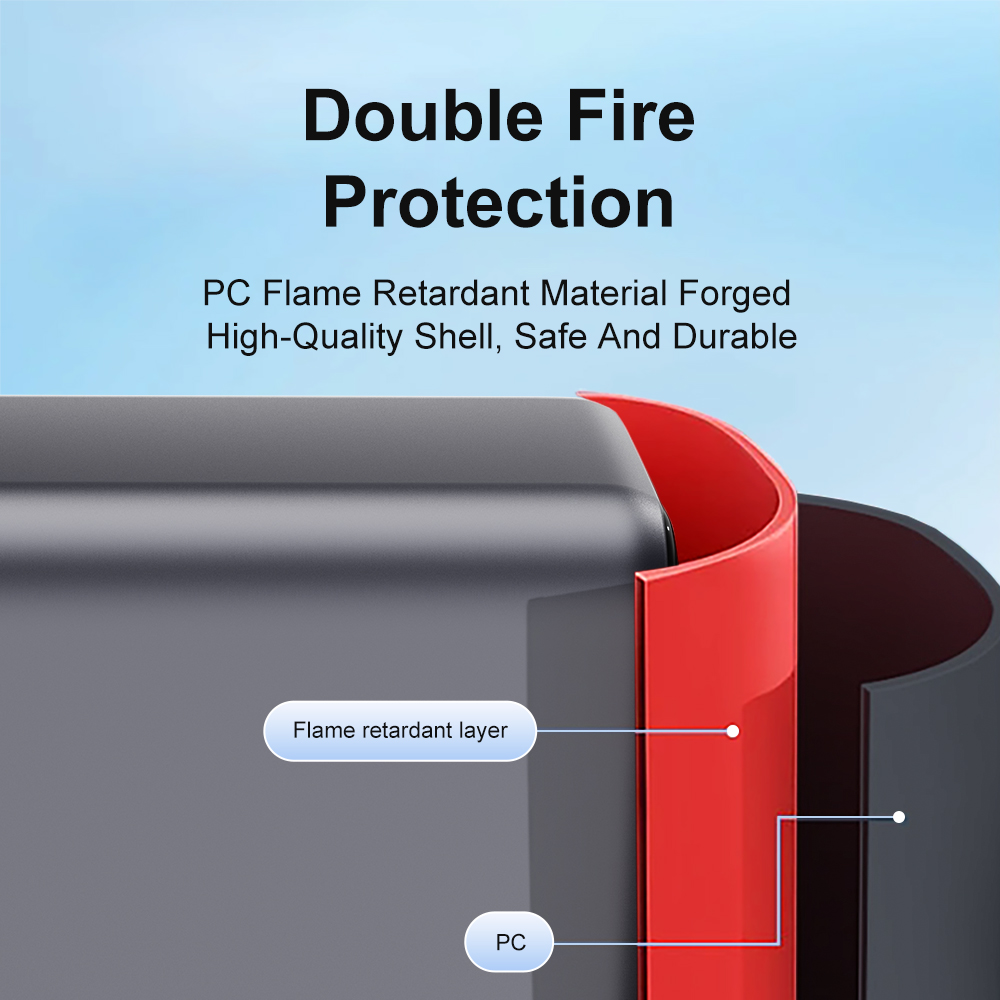

| Housing | Flame-retardant PC |
| Protection | OVP / OCP / OTP / SCP |
| Certifications | CE / UKCA / RoHS (EU) · FCC / ETL (US) · PSE (JP) · SAA / RCM (AU) · KC (KR) |
| MOQ | 3,000 pcs per model |
| OEM/ODM | Logo printing, packaging, custom panel & plug types |
