140W 4-Port USB-C GaN Wall Charger
140W 4-Port USB-C GaN Wall Charger
Product Overview

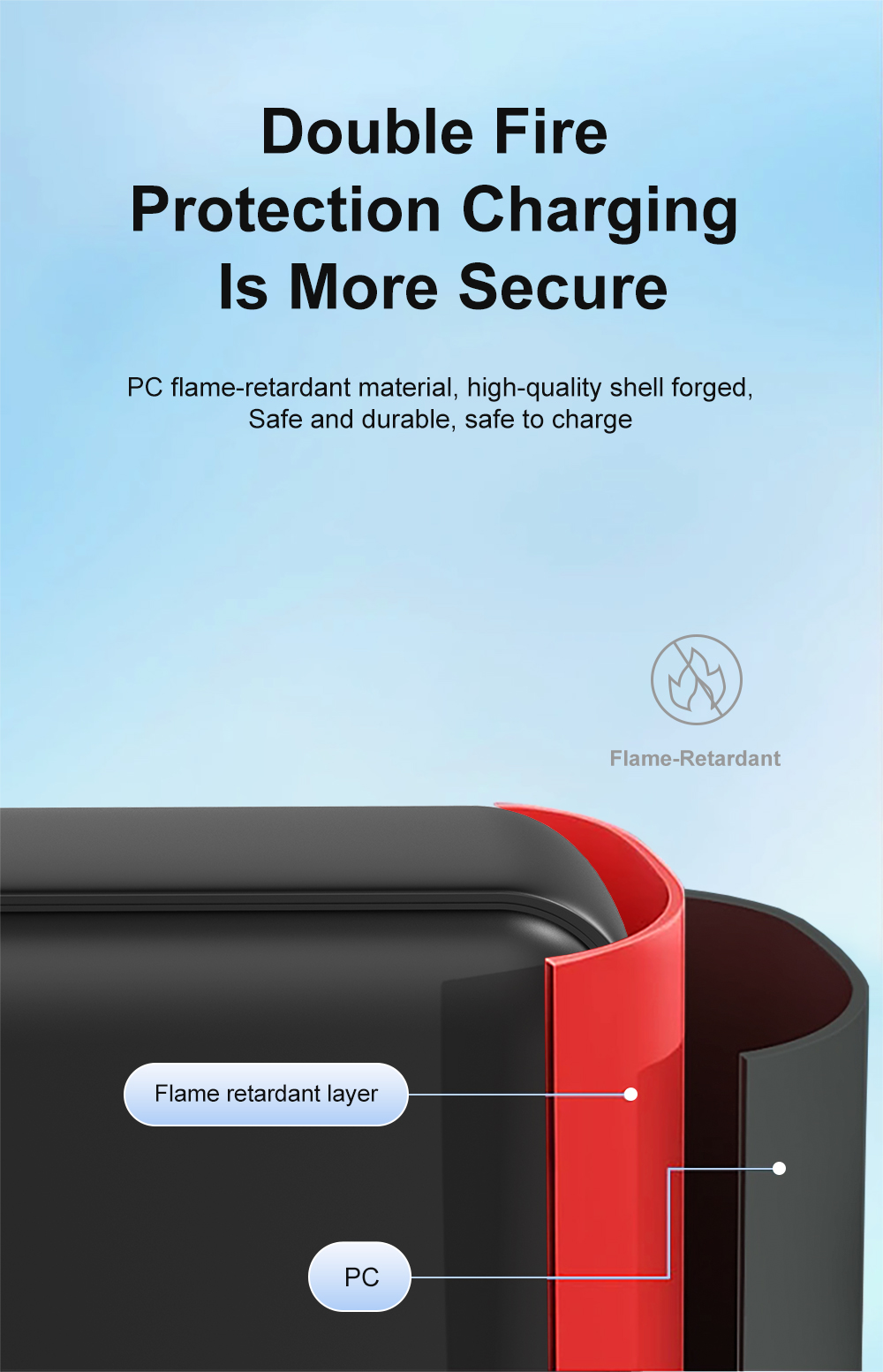

In the G-Power wall-charger line, the 140W 4-Port USB-C GaN Wall Charger targets home offices, dorm rooms and retail shelf programs with 140W of output and 4 ports (3 × USB-C + 1 × USB-A). Charging profiles follow PD3.1 (28V/5A) / PPS / QC3.0, matching each device's requested voltage and current. Its flame-retardant PC housing is sealed and compact, leaving adjacent wall sockets free.
Key Features

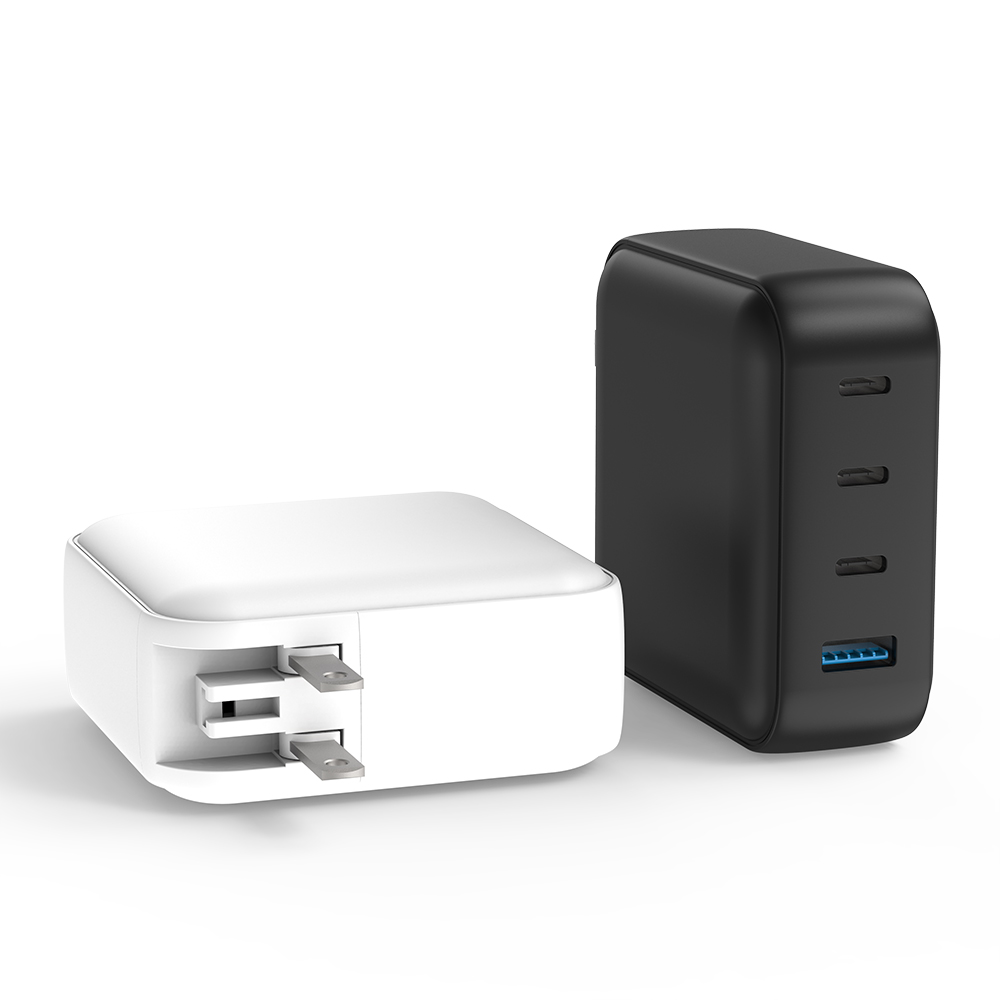

- Plug options: US / EU / UK
- 140W maximum output

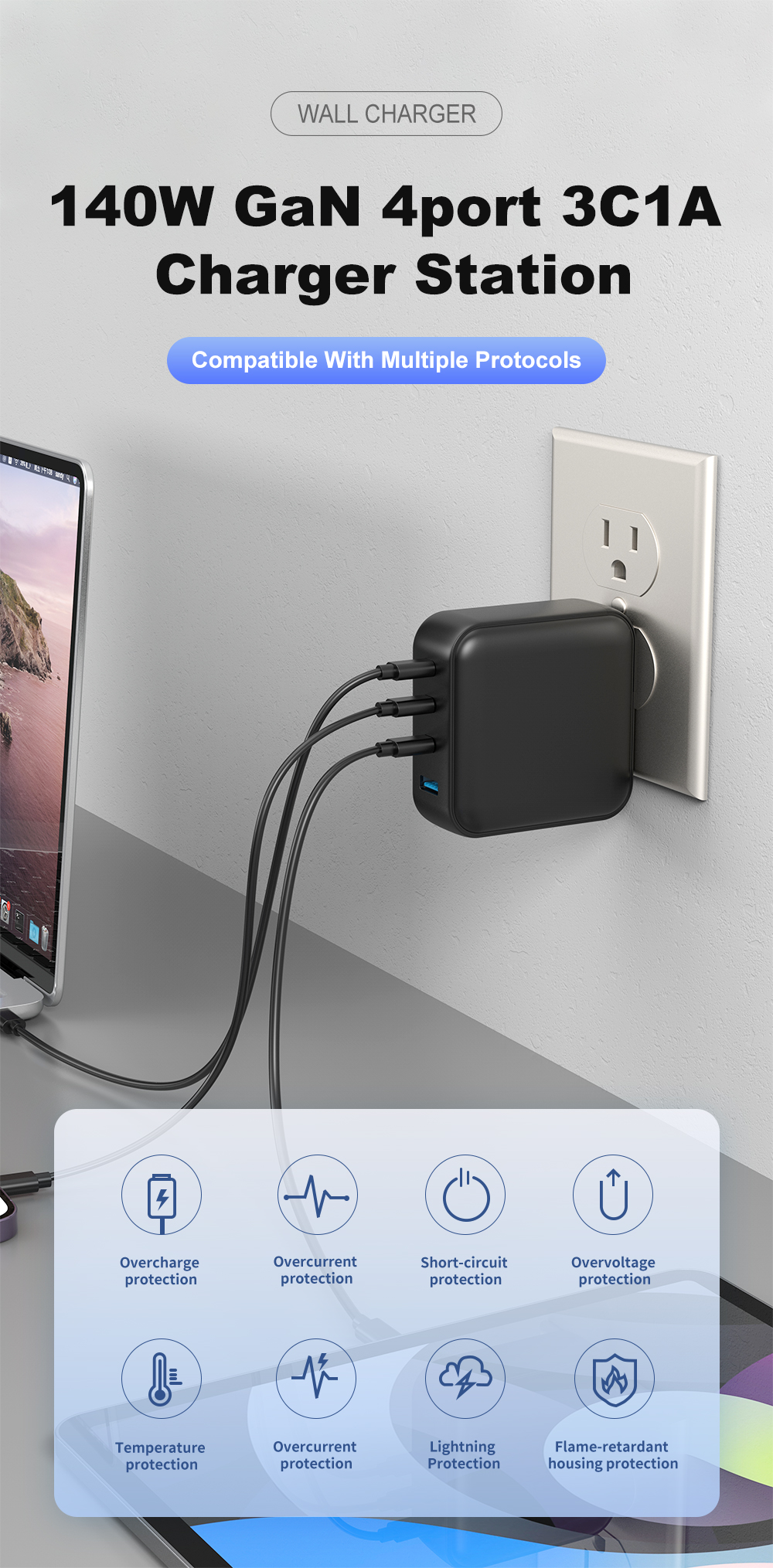

- Multi-layer protection: OVP / OCP / OTP / SCP
- Universal AC 100–240V 50/60Hz input for worldwide SKUs
- Port configuration: 3 × USB-C + 1 × USB-A
- Protocols: PD3.1 (28V/5A) / PPS / QC3.0
Applications

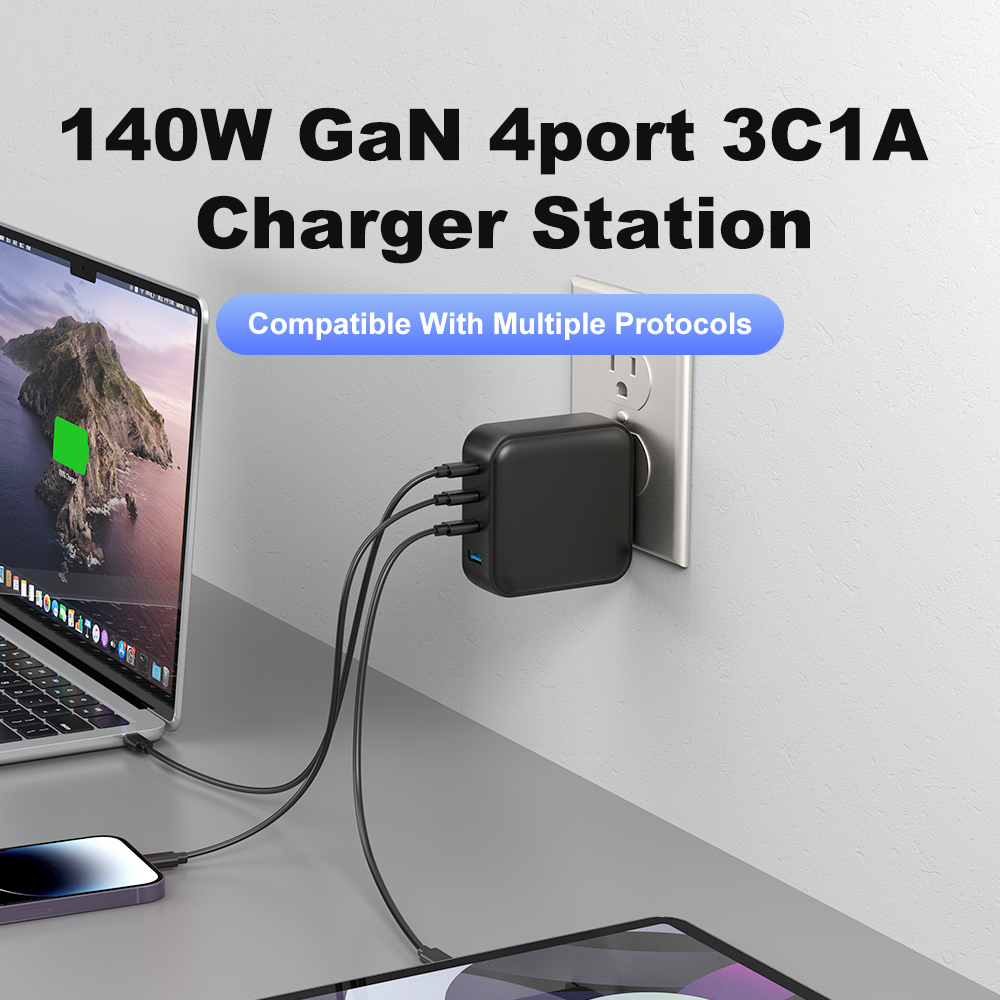

- Smartphones, tablets and USB-C laptops within the rated wattage
- International travel with US / EU / UK plug variants

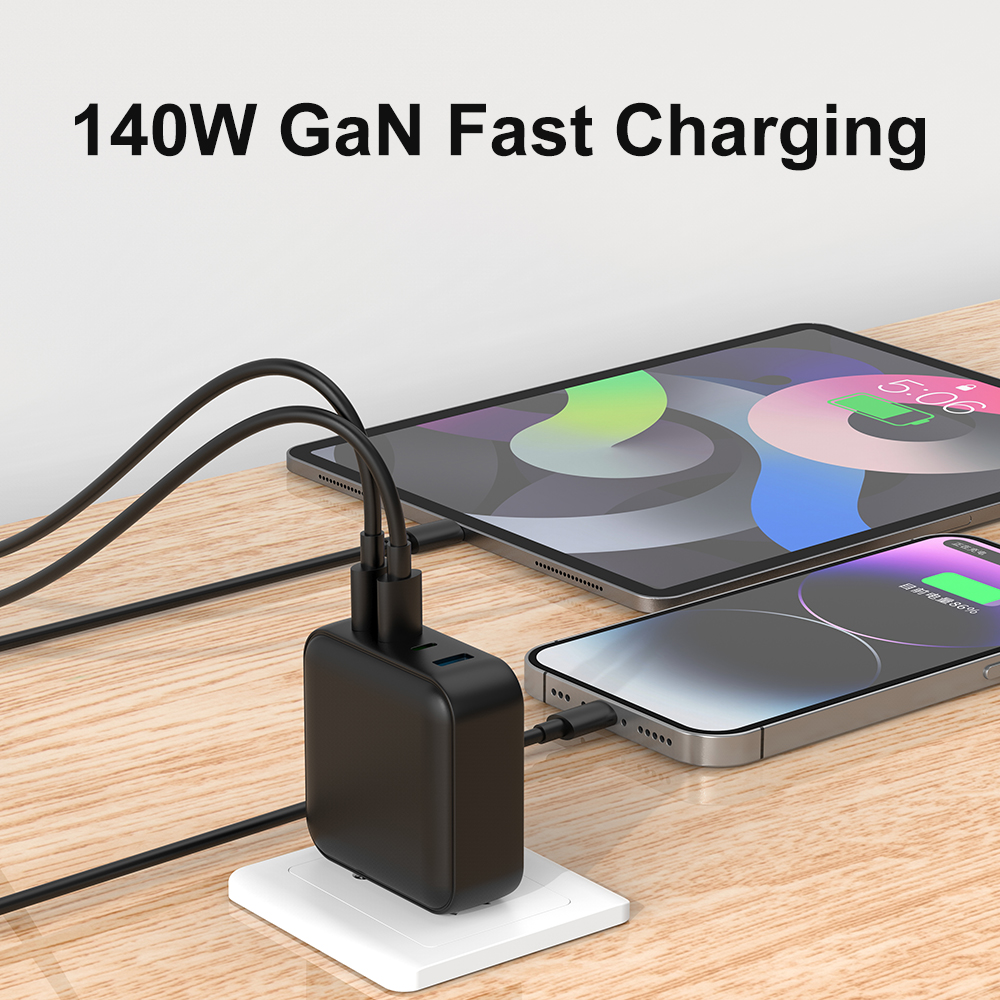

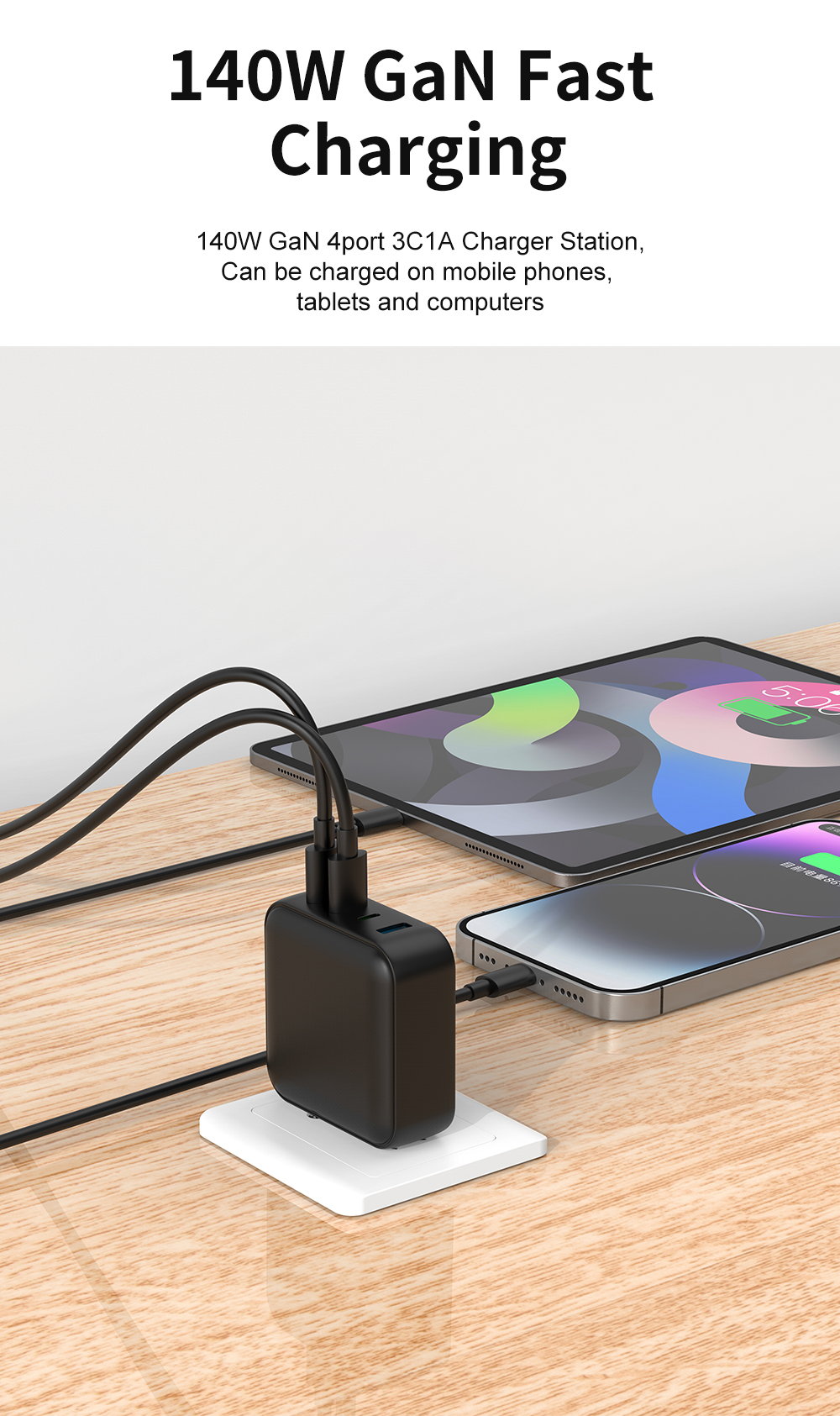

- Desk charging at home and in the office
- Power banks and small portable electronics

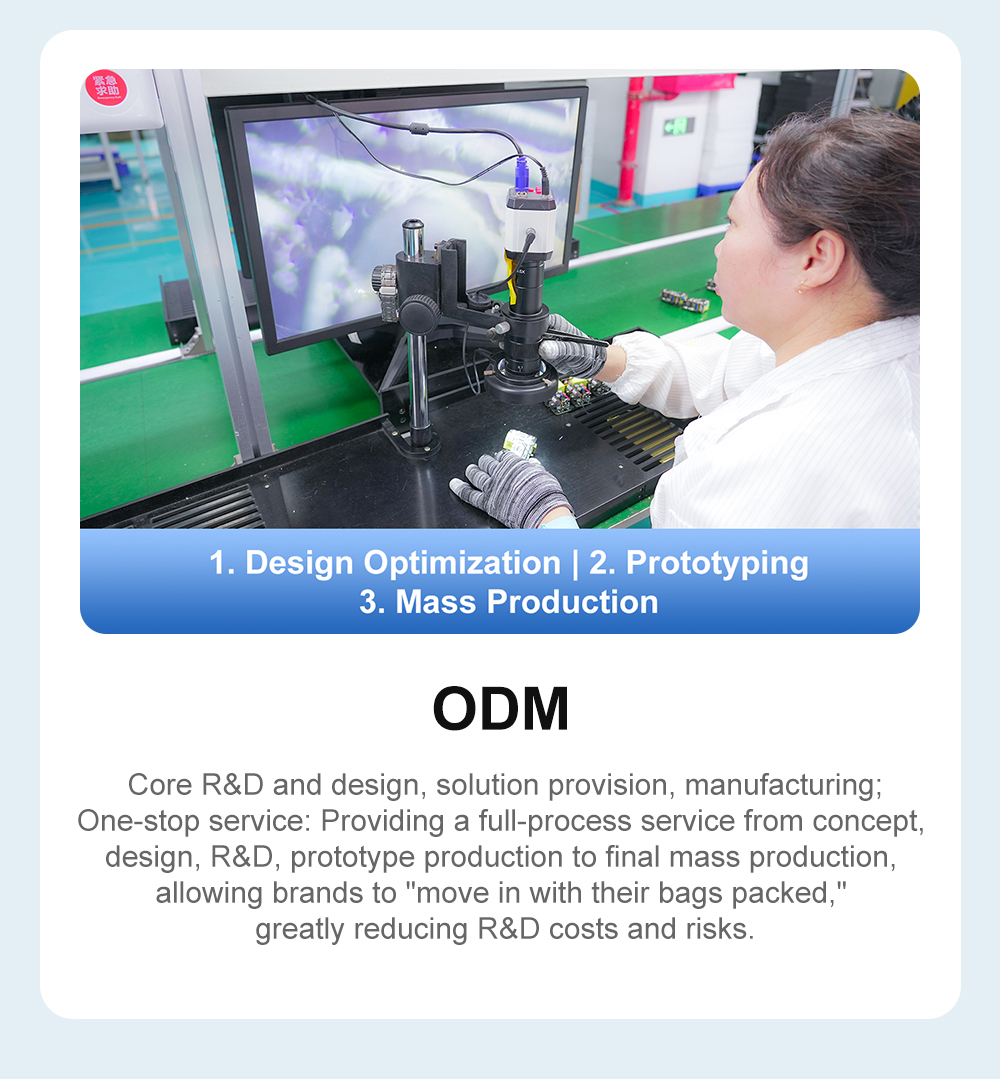

OEM/ODM support covers logo printing, custom packaging, housing colors and plug-type variants; the standard MOQ is 2,000 pcs per model.
Technical Specifications
| Model No. | P1114A |
| Input | AC 100–240V, 50/60Hz |
| Output | C1: 5V/3A, 15V/3A, 20V/5A, 28V/5A (140W Max); PPS: 4.0–11V/5A, 4.0–21V/4A C2: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A; PPS same as C1 C3: 5V/3A, 9V/3A, 12V/2.5A, 15V/2A, 20V/1.5A; PPS: 4.0–11V/3A USB-A: 5V/3A, 9V/2A, 12V/1.5A |

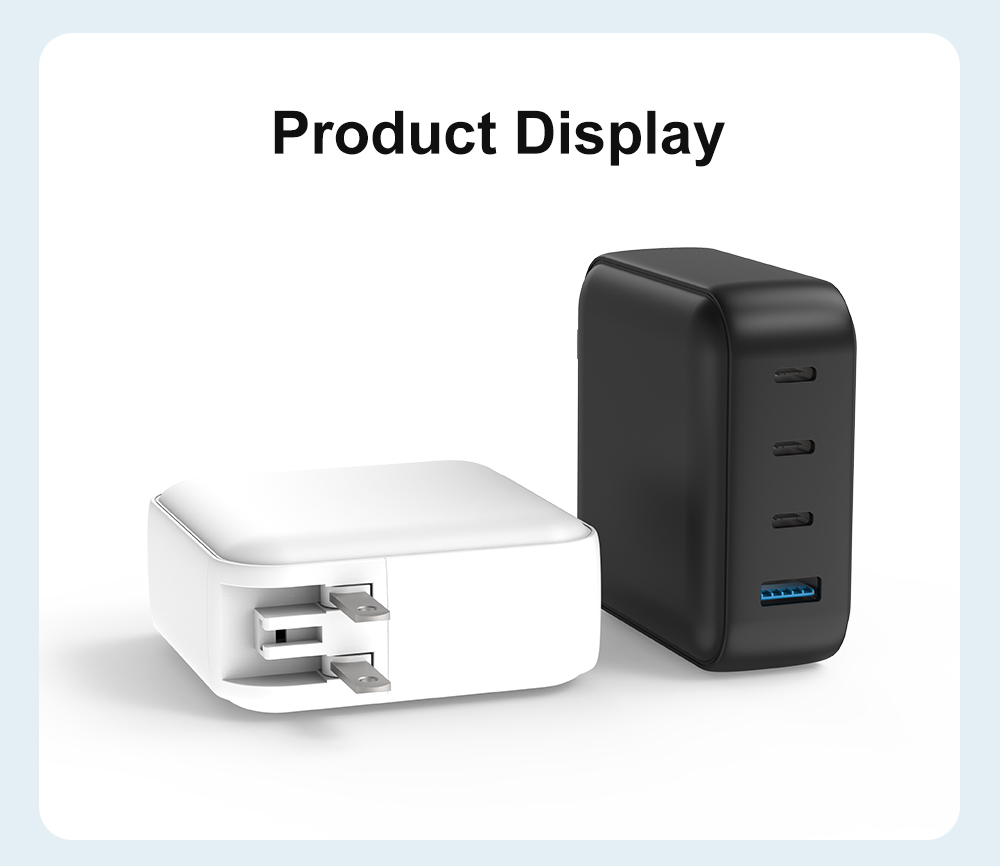

| Ports | 3 × USB-C + 1 × USB-A |
| Protocols | PD3.1 (28V/5A) / PPS / QC3.0 |
| Plug Type | US / EU / UK |

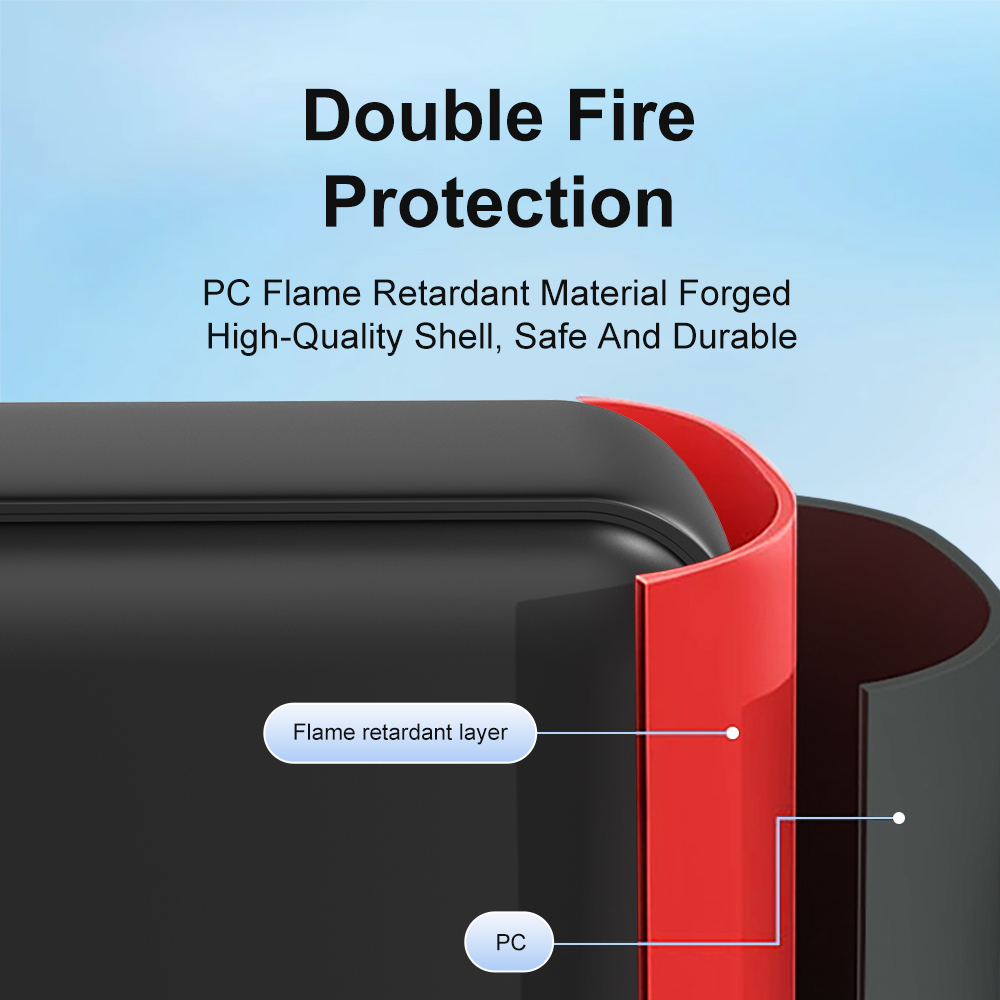

| Housing | Flame-retardant PC |
| Protection | OVP / OCP / OTP / SCP |
| Certifications | CE / UKCA / RoHS (EU) · FCC / ETL (US) · PSE (JP) · SAA / RCM (AU) · KC (KR) |
| MOQ | 2,000 pcs per model |
| OEM/ODM | Logo printing, packaging, custom panel & plug types |
