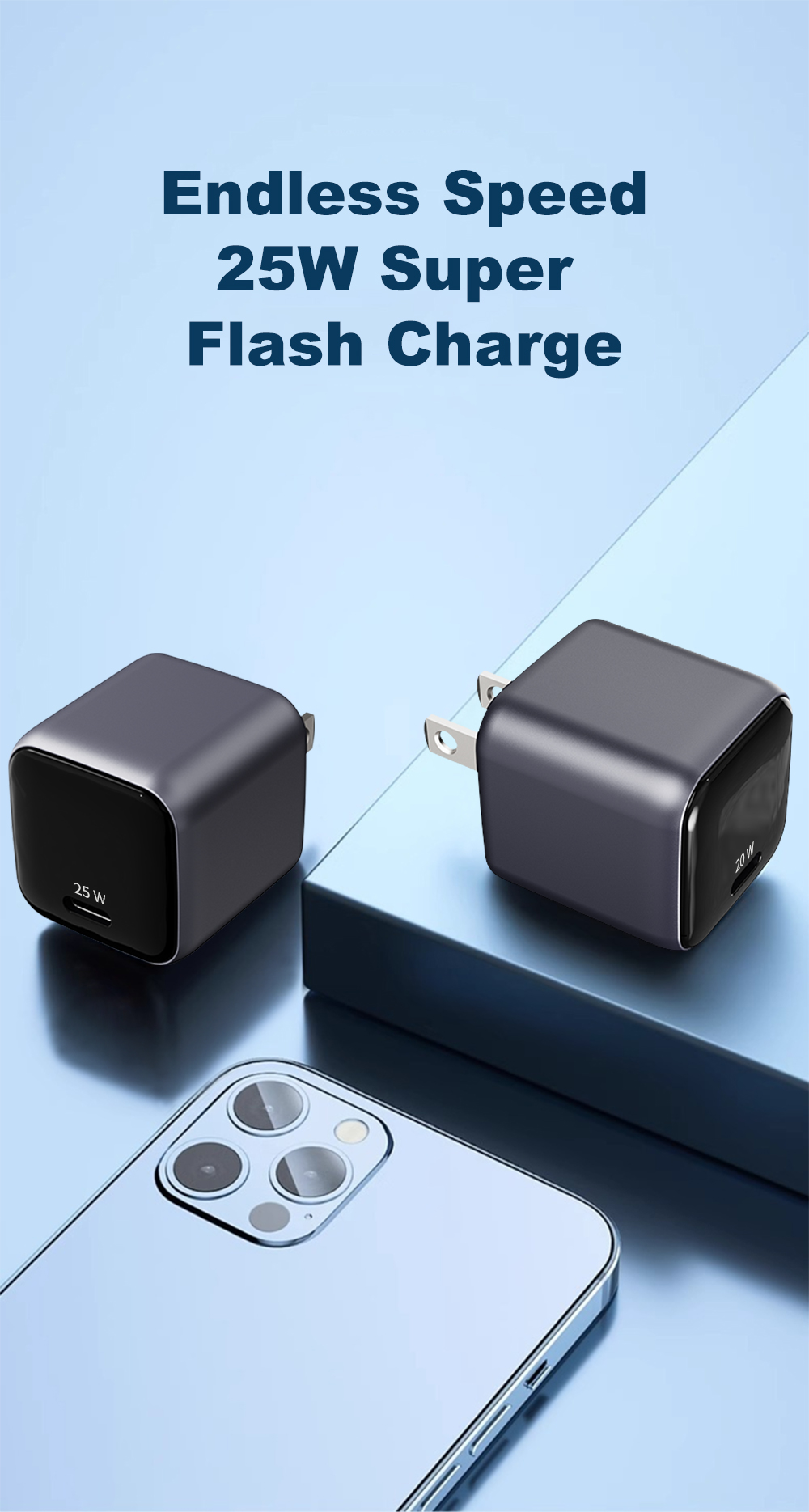

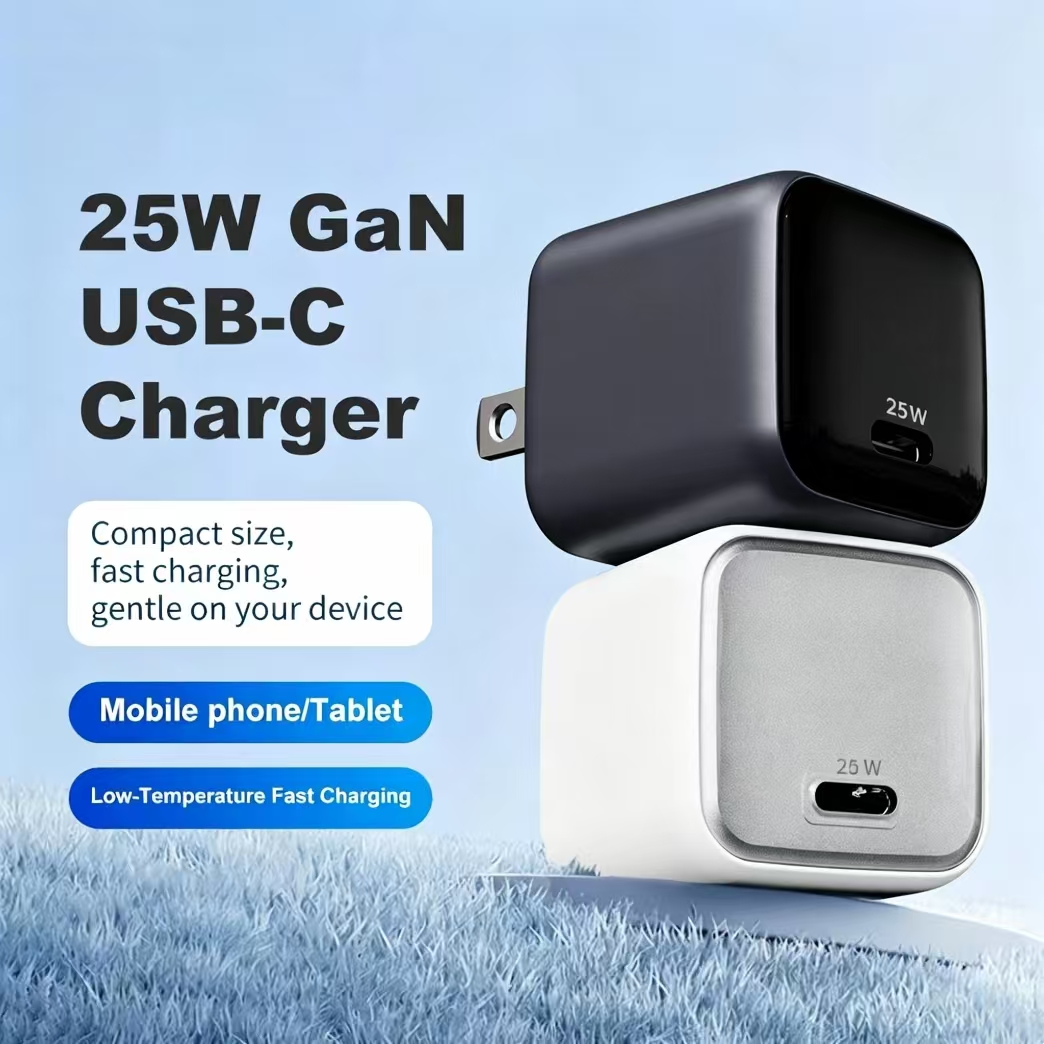

25W USB-C PD GaN Wall Charger
Product Overview
Designed for travel kits, office desks and shared workspaces, the 25W USB-C PD GaN Wall Charger delivers 25W of maximum output through usb-c × 1. Protocol support spans PD3.0 / PPS / QC3.0 / AFC / FCP, keeping fast-charge handshakes reliable across device brands. GaN circuitry shrinks the adapter to 49.5 × 44.5 × 63.4 mm without cutting sustained output.
Highlights
- Universal AC 100–240V 50/60Hz input for worldwide SKUs
- Port configuration: USB-C × 1
- 25W maximum output
- Protocols: PD3.0 / PPS / QC3.0 / AFC / FCP

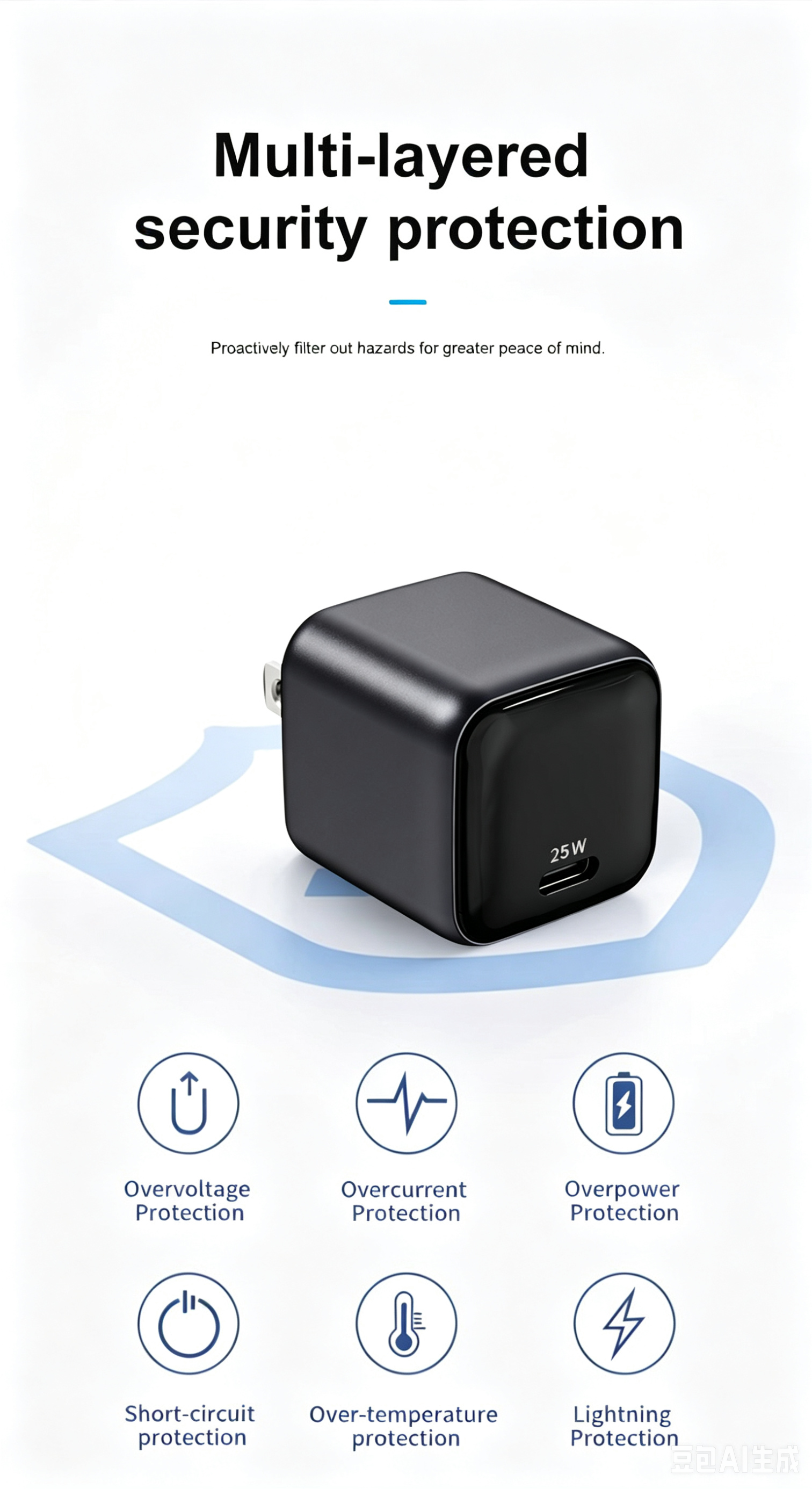

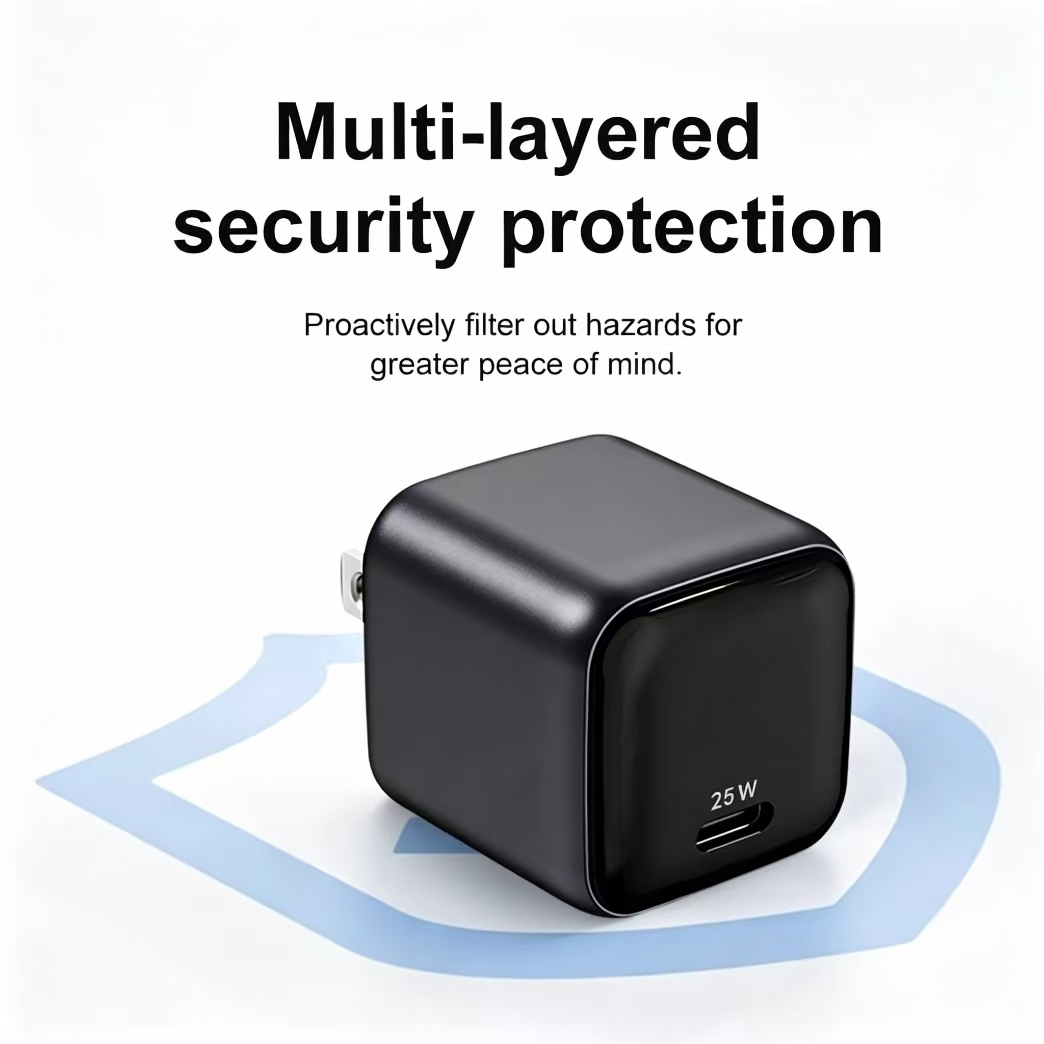

- Multi-layer protection: OVP / OCP / OTP / SCP
- Housing: Flame-retardant PC, 49.5 × 44.5 × 63.4 mm
- Plug options: US / EU / UK
Applications
- Smartphones, tablets and USB-C laptops within the rated wattage
- International travel with US / EU / UK plug variants
- Desk charging at home and in the office
- Power banks and small portable electronics
OEM/ODM support covers logo printing, custom packaging, housing colors and plug-type variants; the standard MOQ is 5,000 pcs per model.

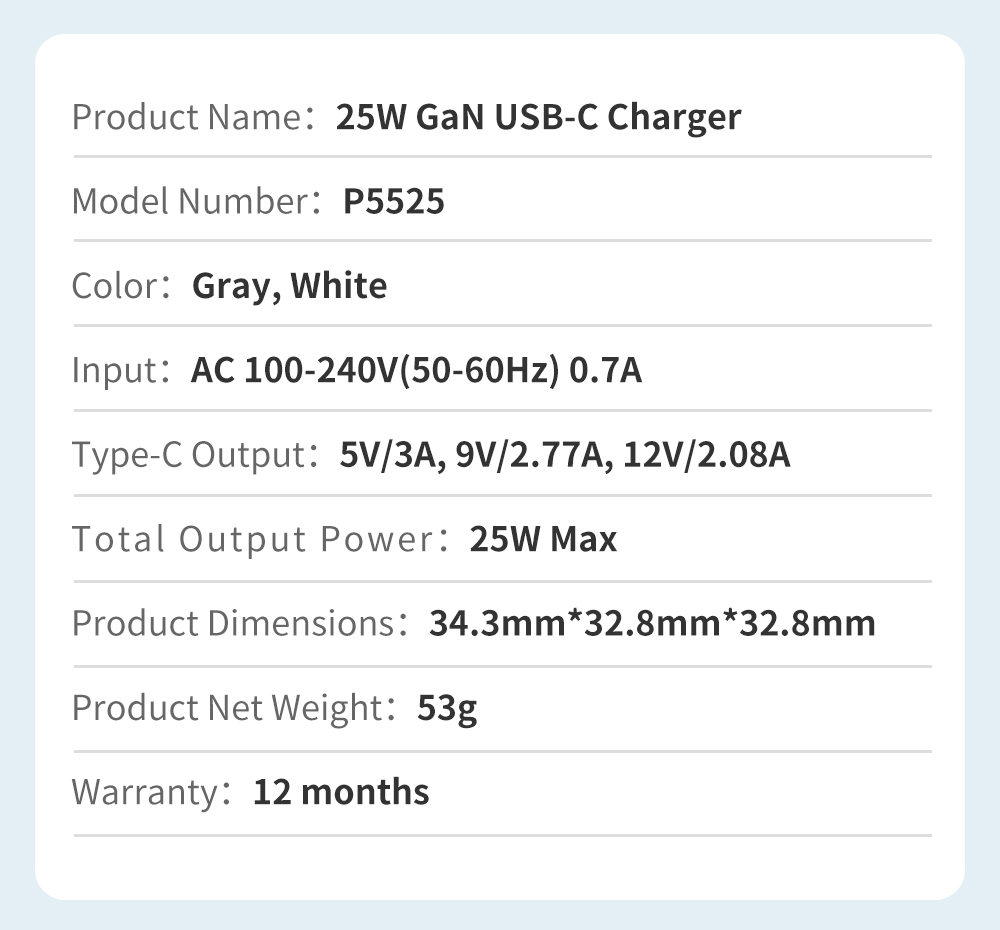

Technical Specifications
| Model No. | P5525 |
| Input | AC 100–240V, 50/60Hz, 0.7A |
| Output | USB-C ×1: 5V/3A, 9V/2.77A, 12V/2.08A (Max 25W); PPS: 5–11V/2.2A |
| Ports | USB-C × 1 |
| Protocols | PD3.0 / PPS / QC3.0 / AFC / FCP |
| Plug Type | US / EU / UK |
| Dimensions | 49.5 × 44.5 × 63.4 mm |
| Housing | Flame-retardant PC |
| Protection | OVP / OCP / OTP / SCP |
| Certifications | CE / UKCA / RoHS (EU) · FCC / ETL (US) · PSE (JP) · SAA / RCM (AU) · KC (KR) |
| MOQ | 5,000 pcs per model |
| OEM/ODM | Logo printing, packaging, custom panel & plug types |
