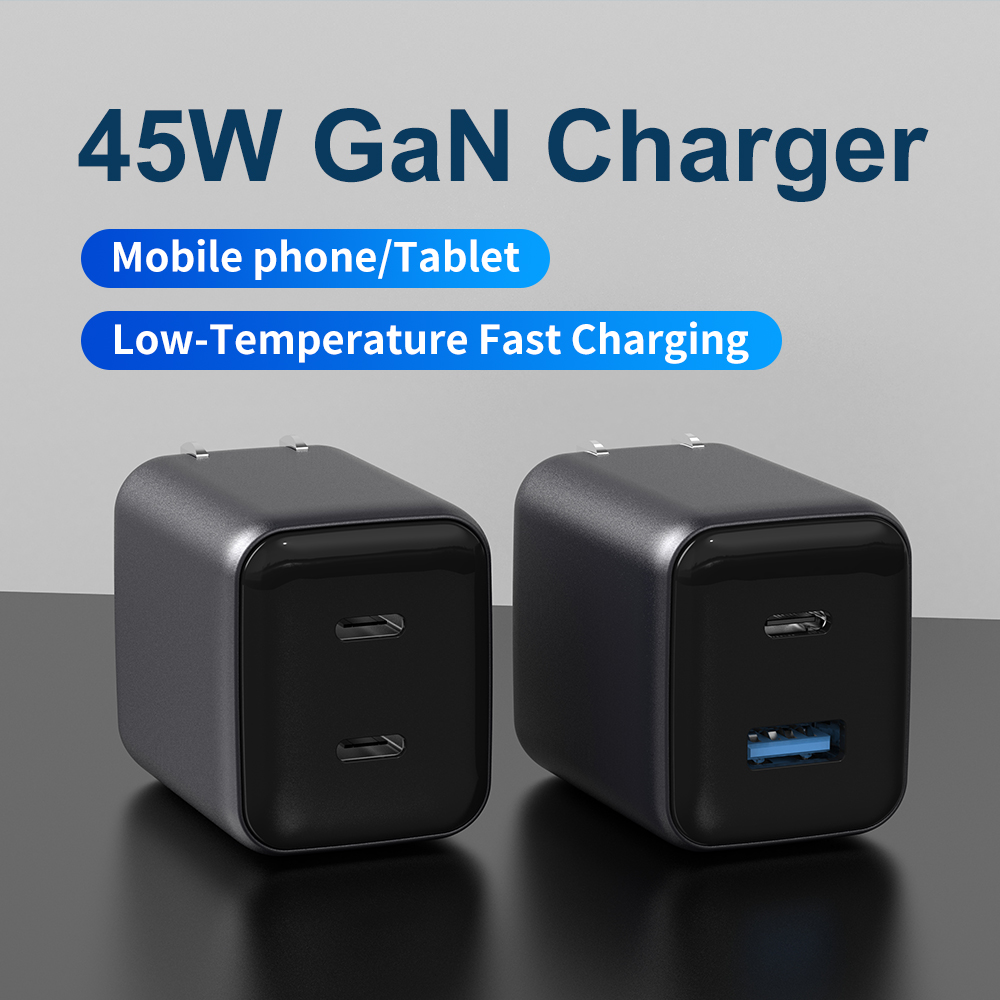

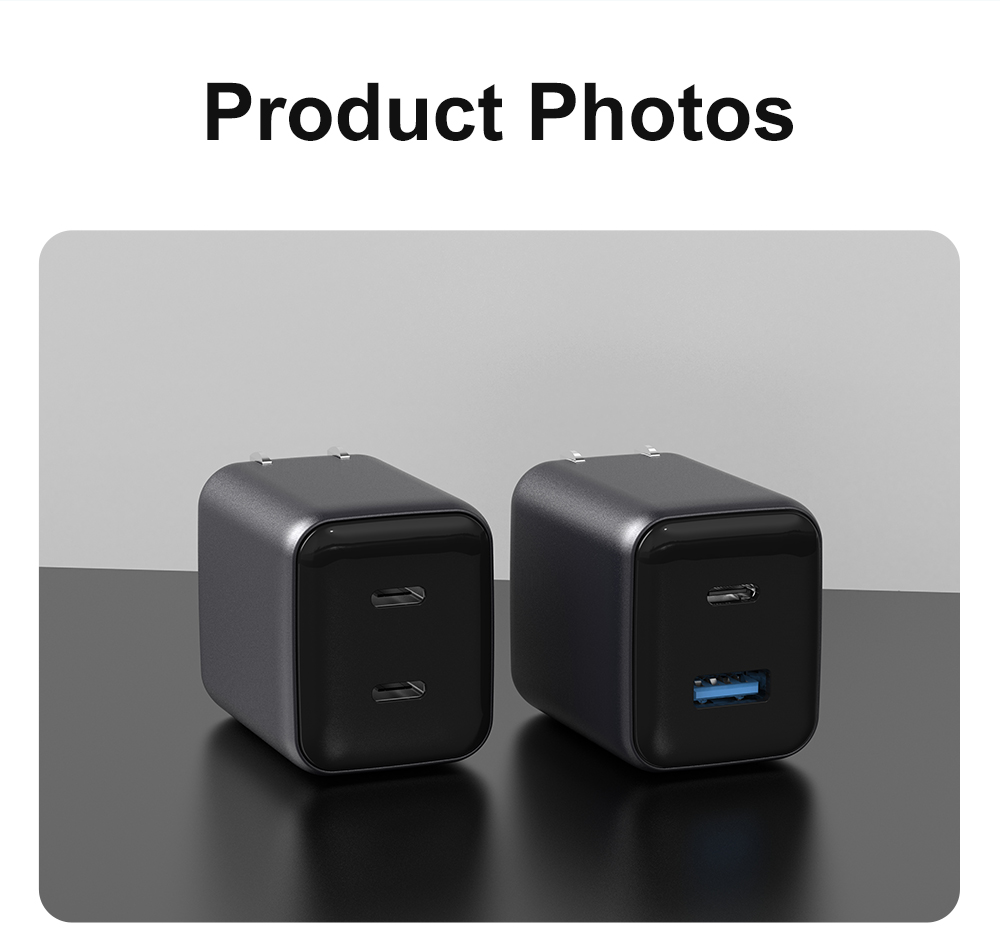

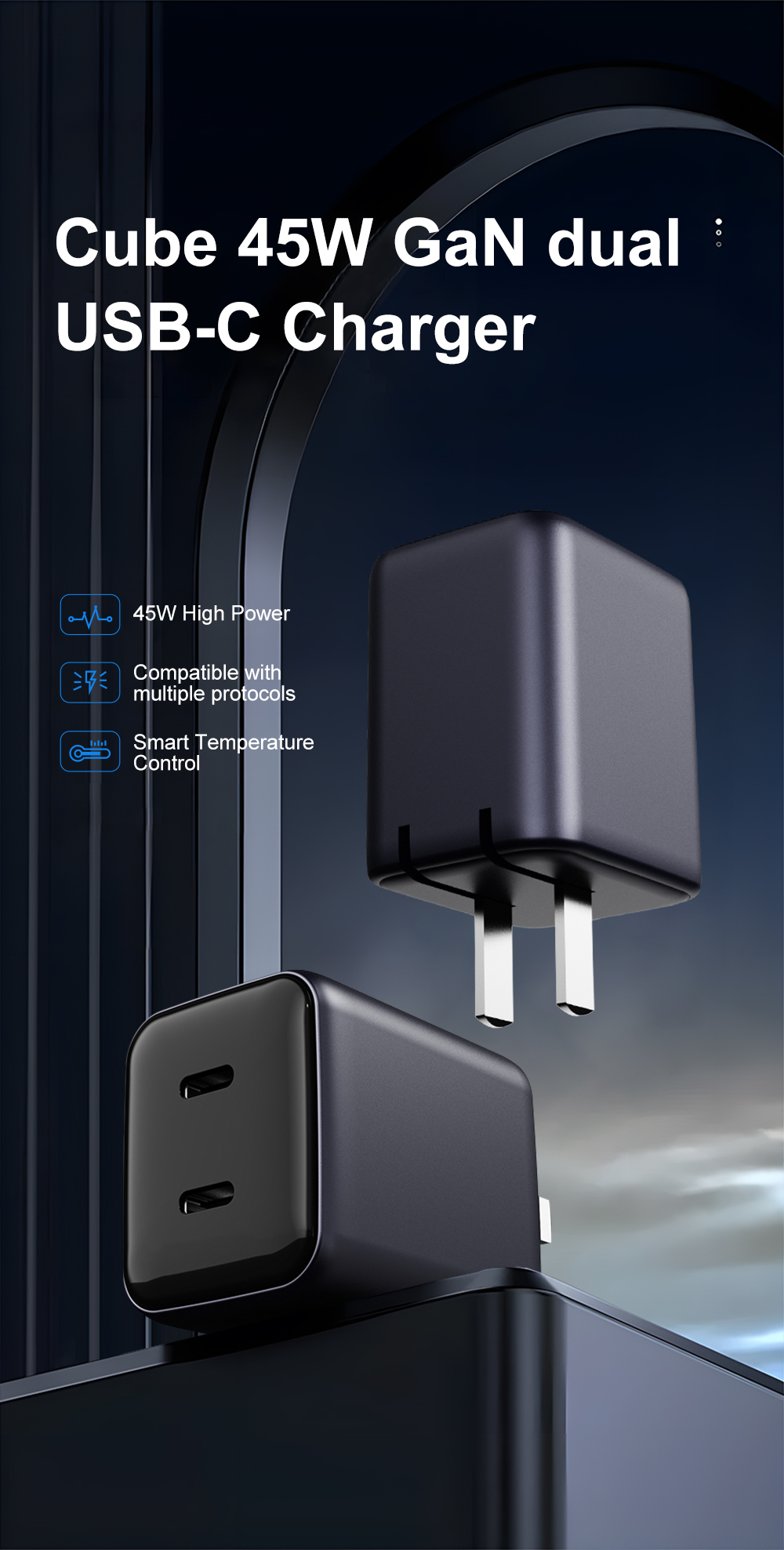

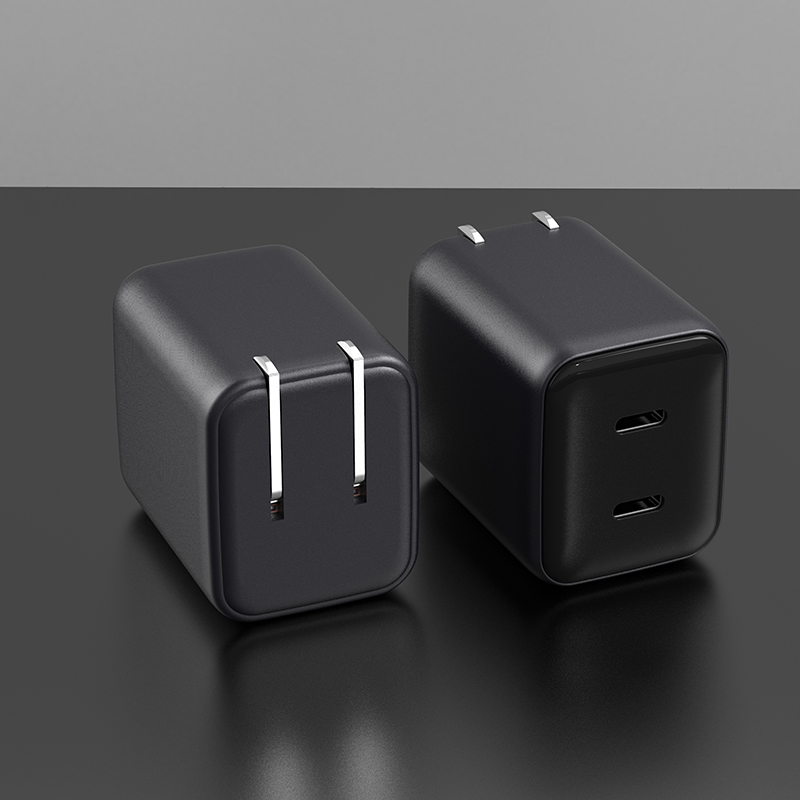

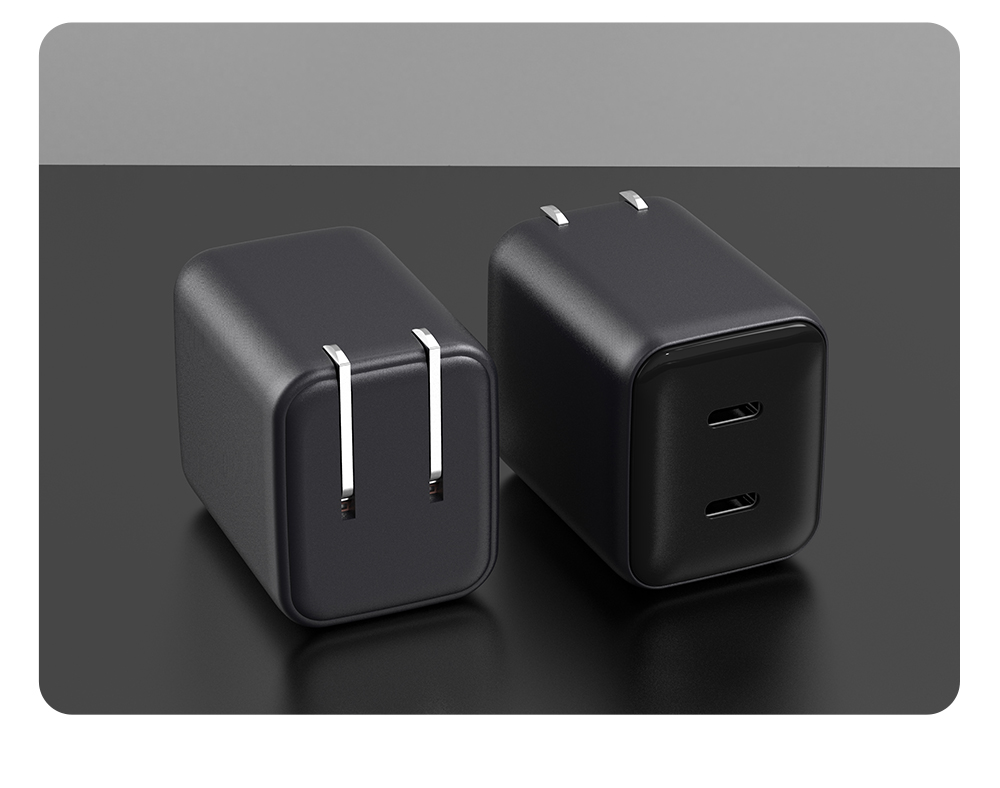

45W Dual USB-C Compact GaN Charger
45W Dual USB-C Compact GaN Charger
Product Overview
The 45W Dual USB-C Compact GaN Charger pairs 45W of charging power with 2 ports (2 × USB-C), a practical fit for home offices, dorm rooms and retail shelf programs. Protocol support spans PD3.0 / PPS / QC3.0 / AFC / FCP, keeping fast-charge handshakes reliable across device brands. Gallium-nitride switching keeps the 33 × 39.72 × 47.1 mm housing cool under continuous load.
Feature Summary
- Port configuration: 2 × USB-C
- Plug options: Interchangeable AC plug (US / EU / UK)
- Multi-layer protection: OVP / OCP / OTP / SCP
- Universal AC 100–240V 50/60Hz input for worldwide SKUs
- 45W maximum output
- Housing: Flame-retardant PC, 33 × 39.72 × 47.1 mm

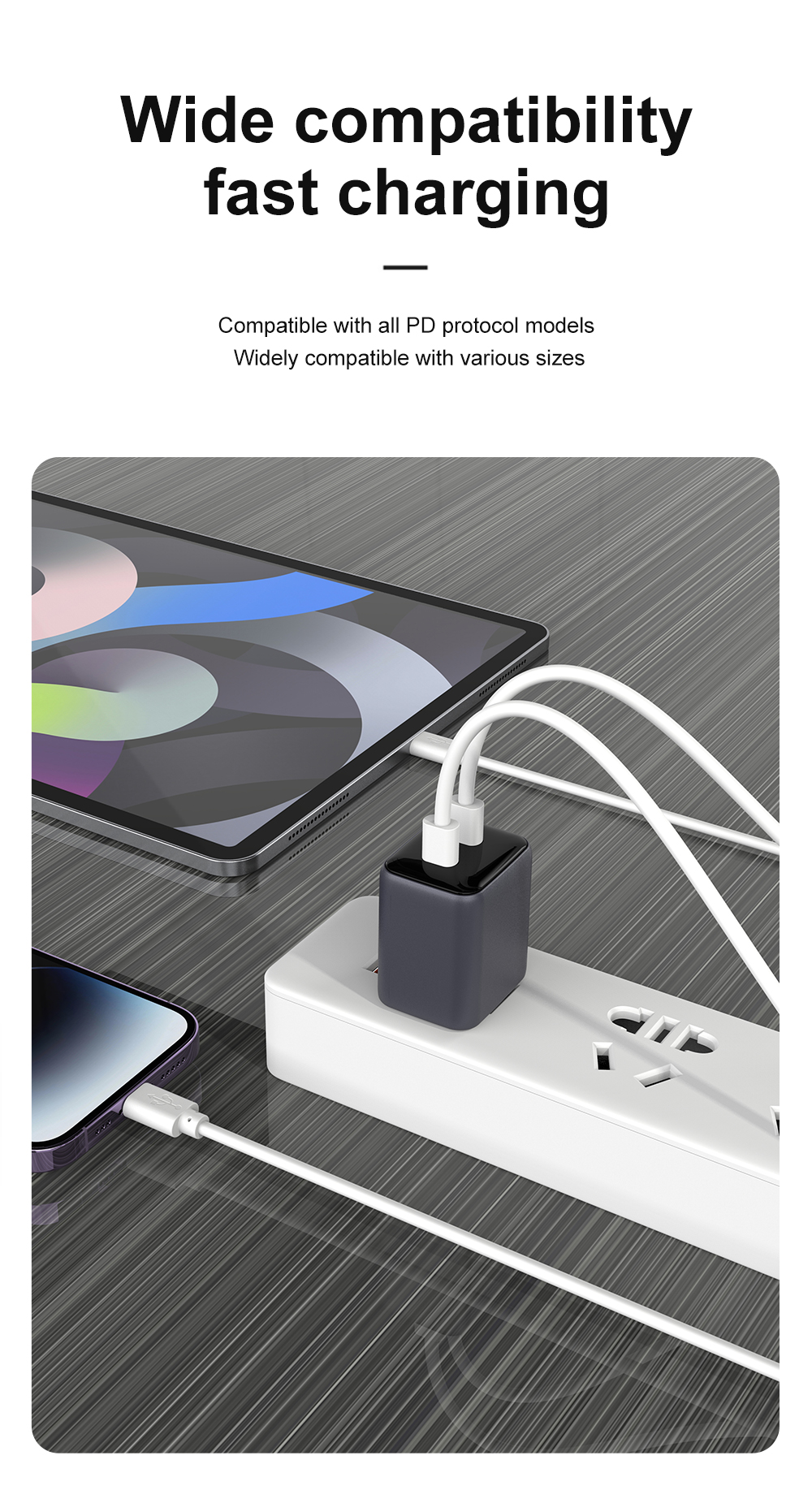

- Protocols: PD3.0 / PPS / QC3.0 / AFC / FCP
Applications

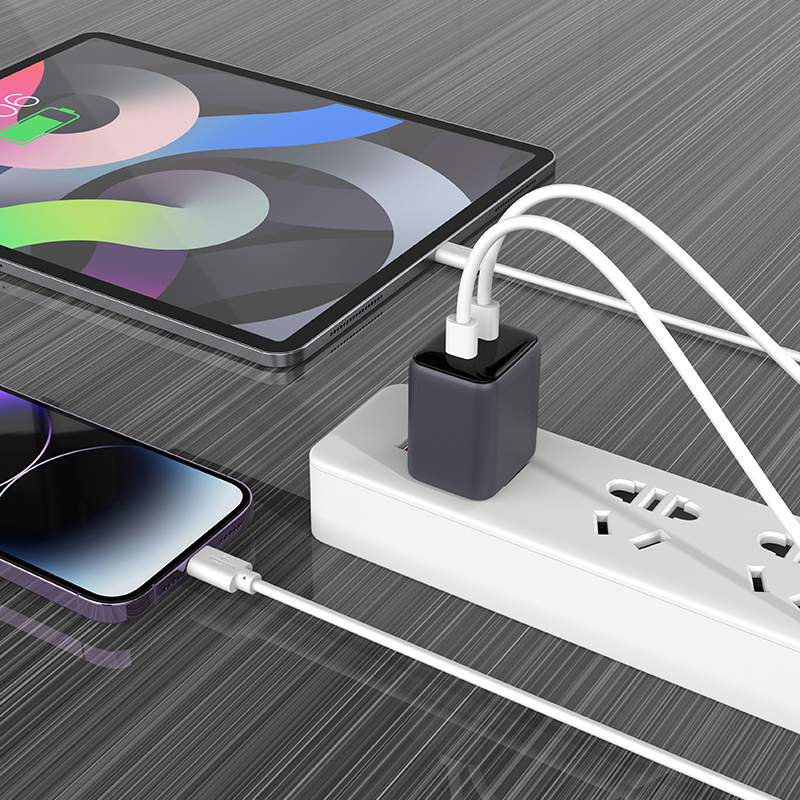

- Smartphones, tablets and USB-C laptops within the rated wattage
- International travel with Interchangeable AC plug (US / EU / UK) plug variants

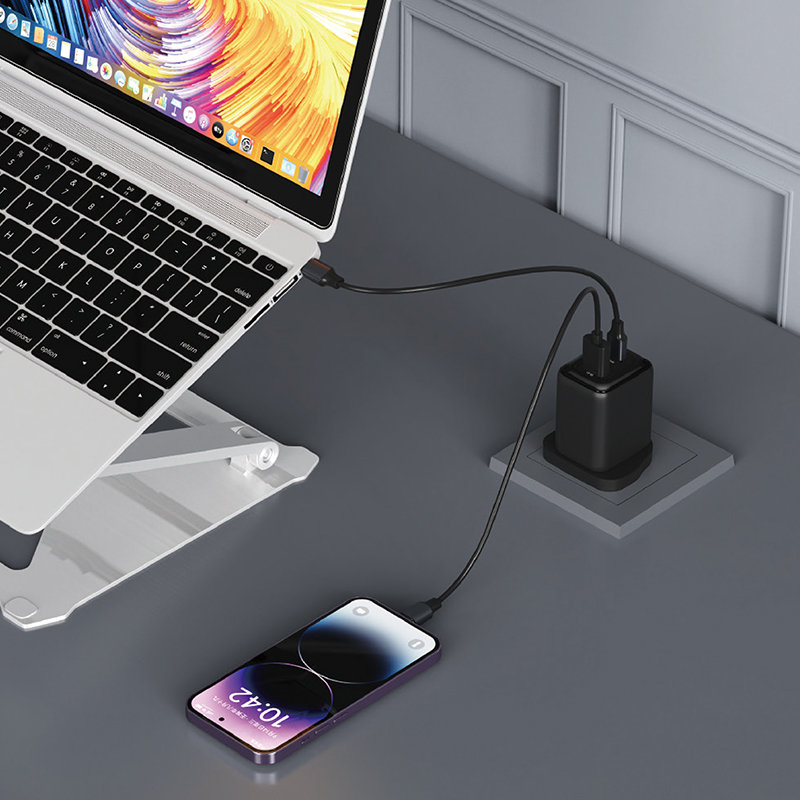

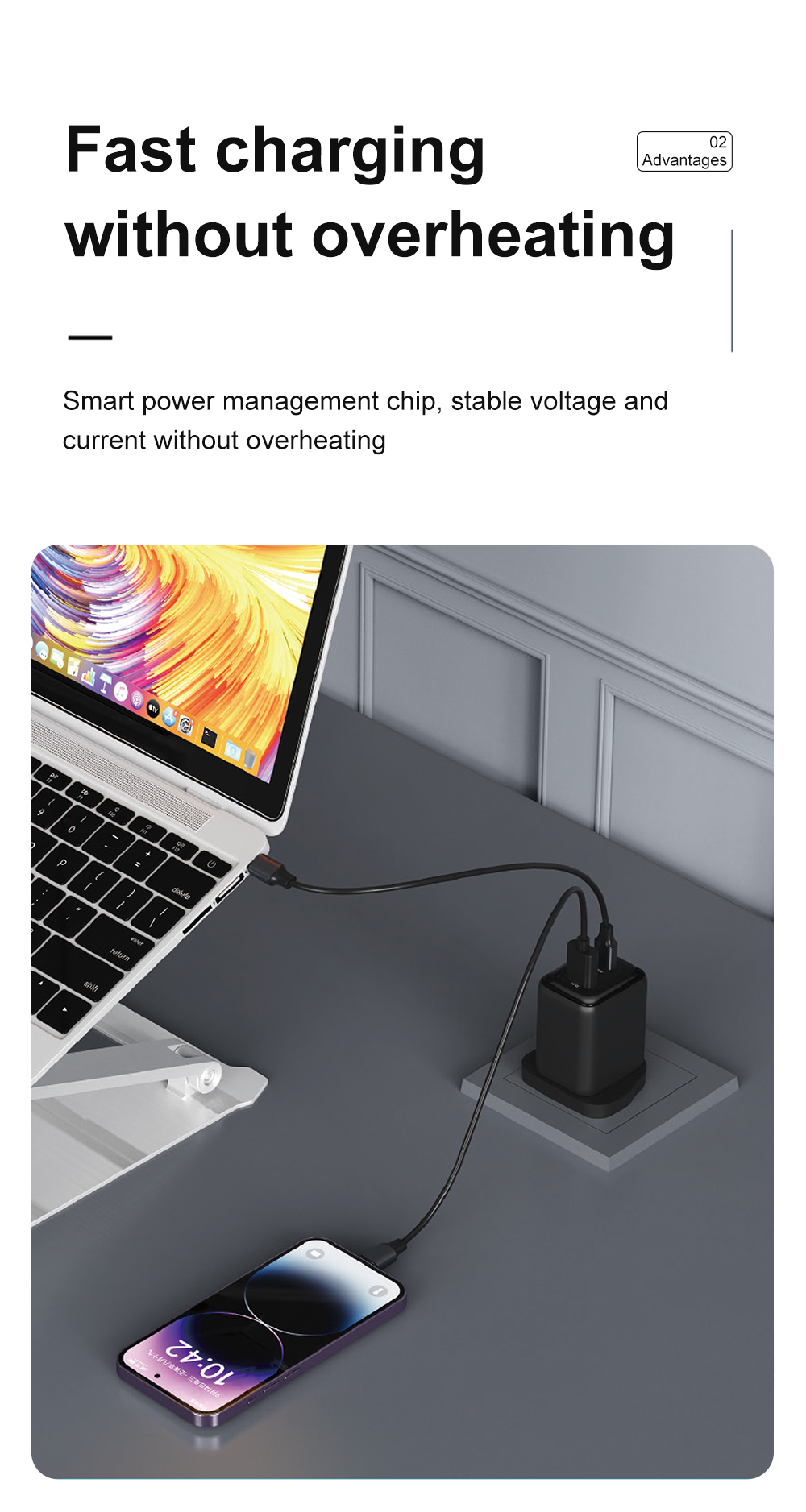

- Desk charging at home and in the office
- Power banks and small portable electronics
OEM/ODM support covers logo printing, custom packaging, housing colors and plug-type variants; the standard MOQ is 3,000 pcs per model.

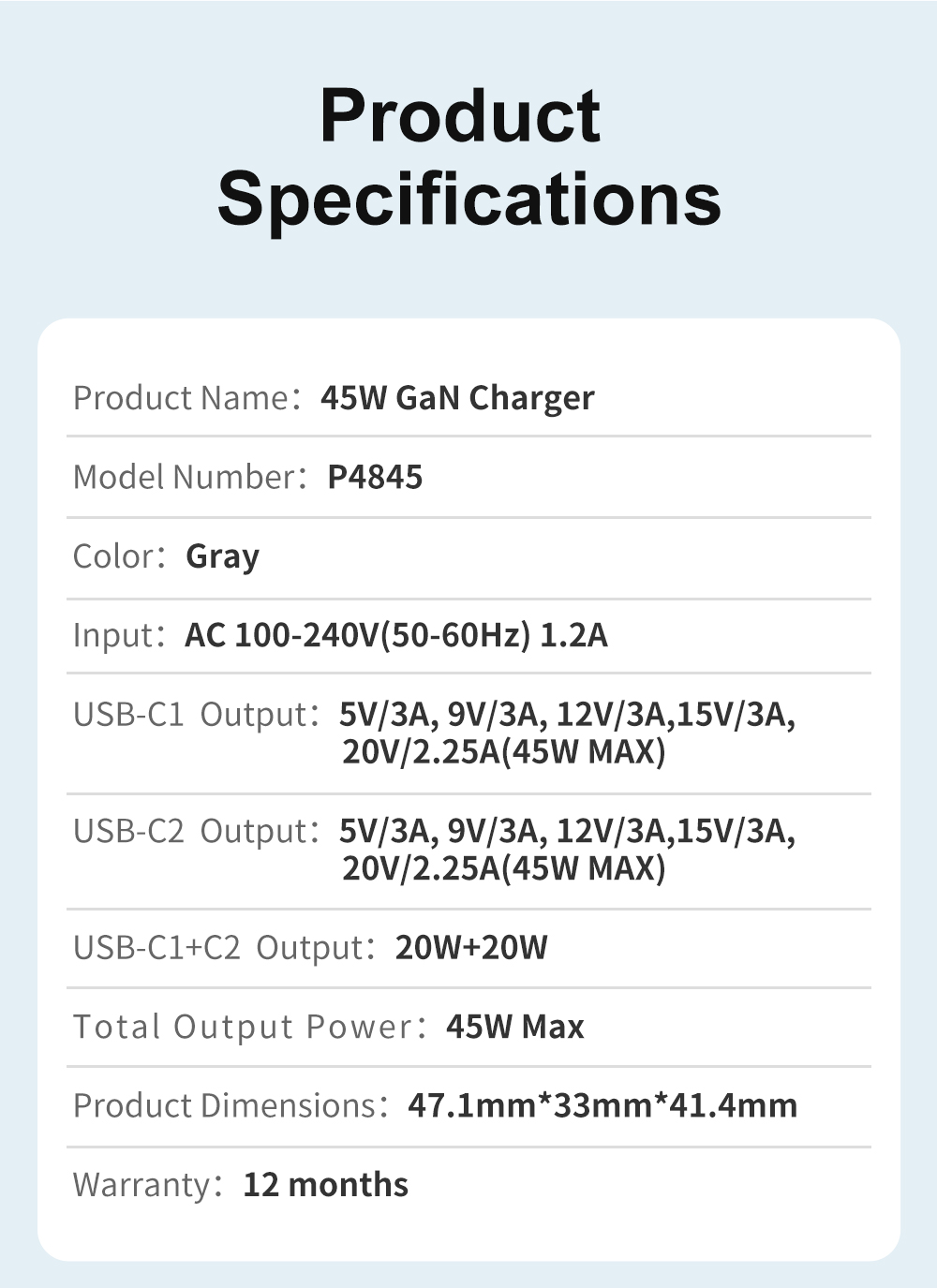

Technical Specifications
| Model No. | P4845 |
| Input | AC 100–240V, 50/60Hz |
| Output | C1 / C2 (each port): 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A; PPS: 5–11V/3A |
| Multi-Port Distribution | C1 + C2: 20W + 20W |
| Ports | 2 × USB-C |
| Protocols | PD3.0 / PPS / QC3.0 / AFC / FCP |
| Plug Type | Interchangeable AC plug (US / EU / UK) |
| Dimensions | 33 × 39.72 × 47.1 mm |
| Housing | Flame-retardant PC |
| Protection | OVP / OCP / OTP / SCP |
| Certifications | CE / UKCA / RoHS (EU) · FCC / ETL (US) · PSE (JP) · SAA / RCM (AU) · KC (KR) |
| MOQ | 3,000 pcs per model |
| OEM/ODM | Logo printing, packaging, custom panel & plug types |
