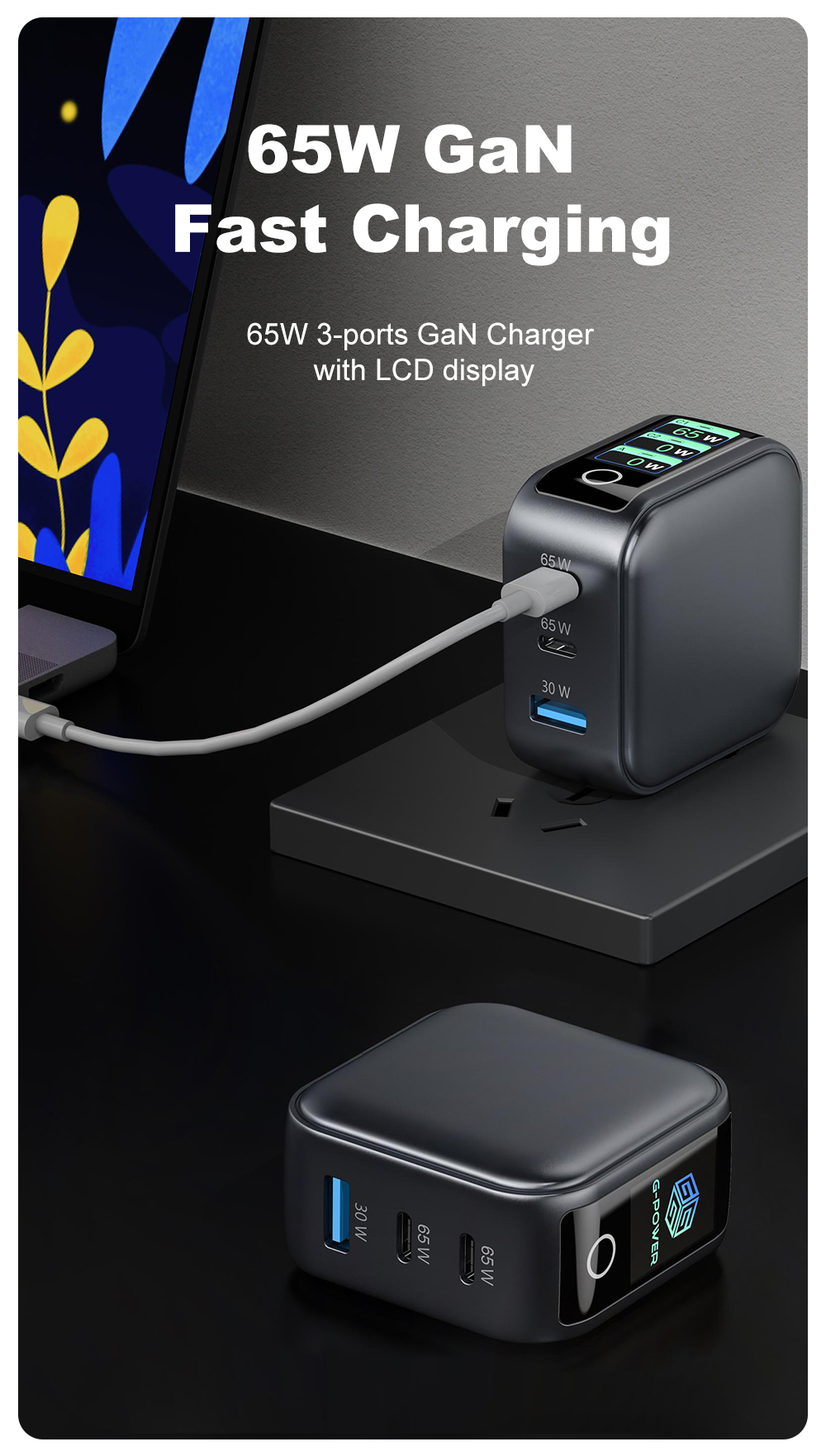

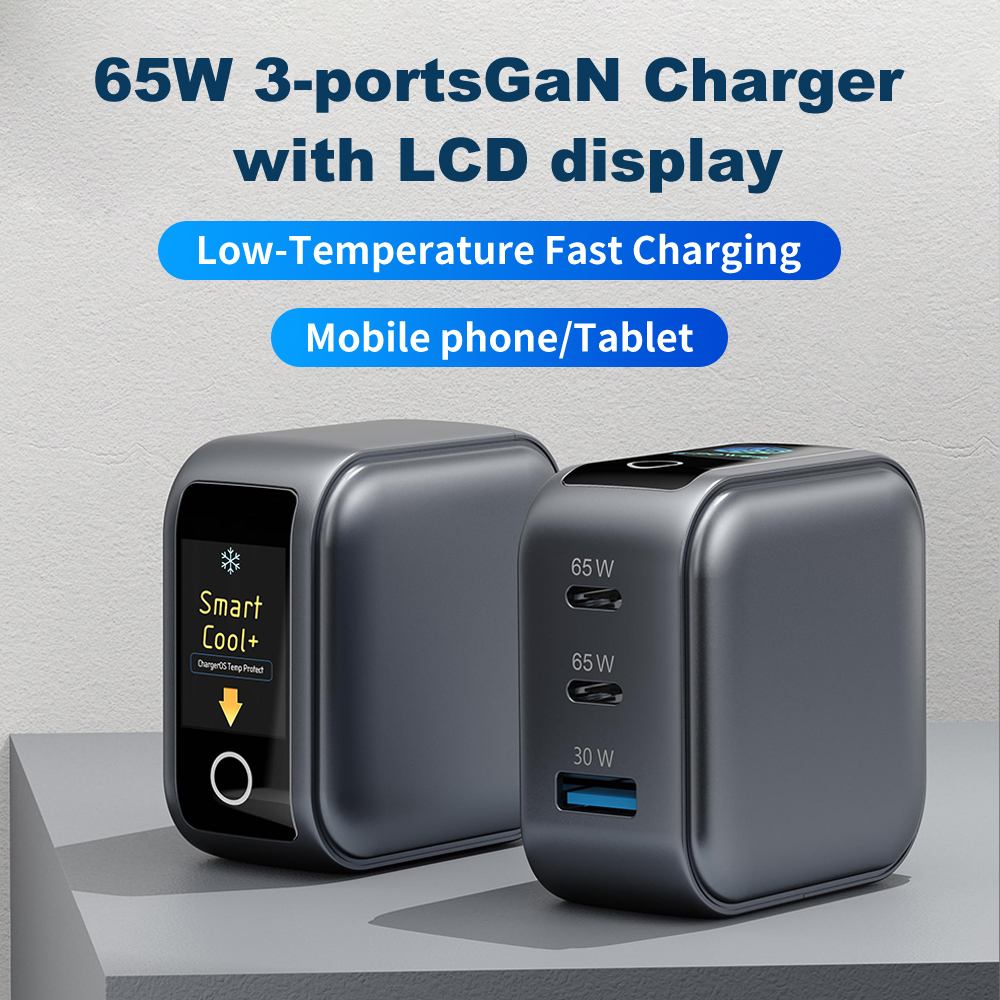

65W GaN Charger with LCD Display
Product Overview

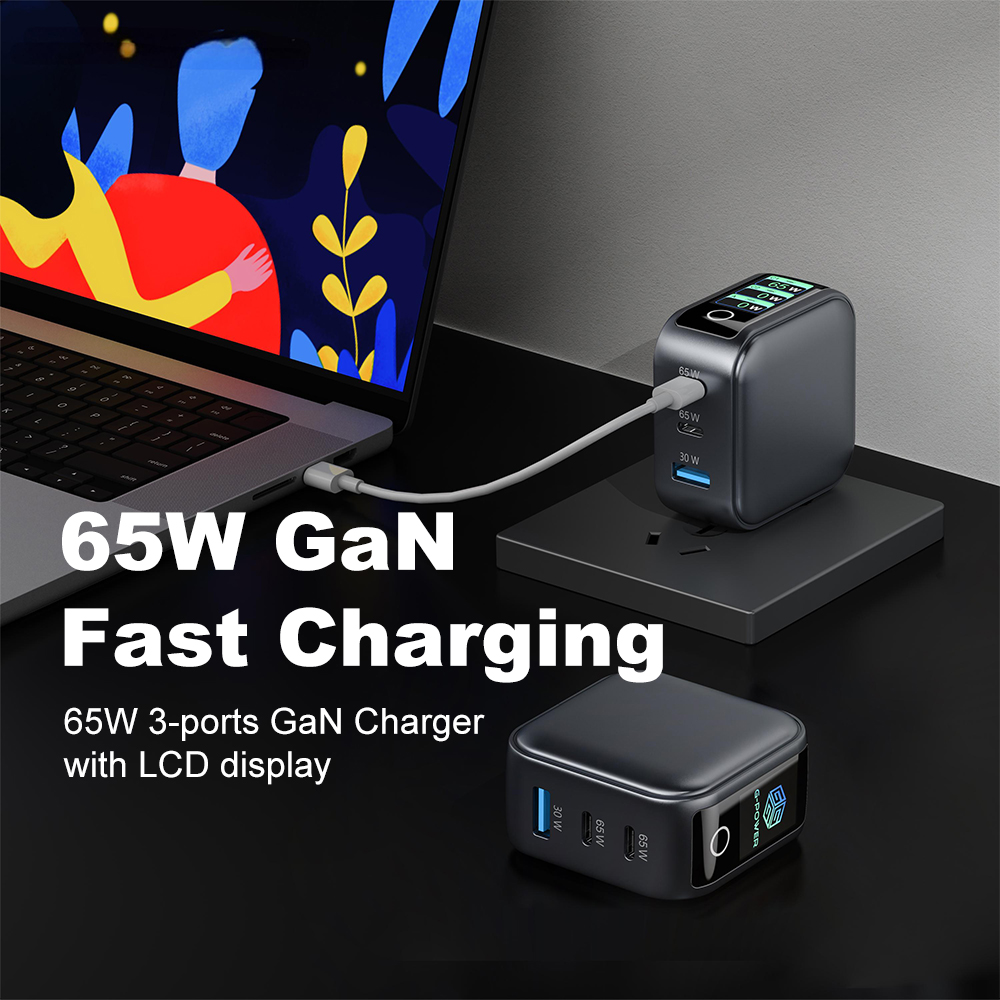

The 65W GaN Charger with LCD Display pairs 65W of charging power with 3 ports (2 × USB-C + 1 × USB-A), a practical fit for home offices, dorm rooms and retail shelf programs. Protocol support spans PD3.0 / PPS / QC3.0, keeping fast-charge handshakes reliable across device brands. Gallium-nitride switching keeps the 58 × 58 × 31.1 mm housing cool under continuous load.

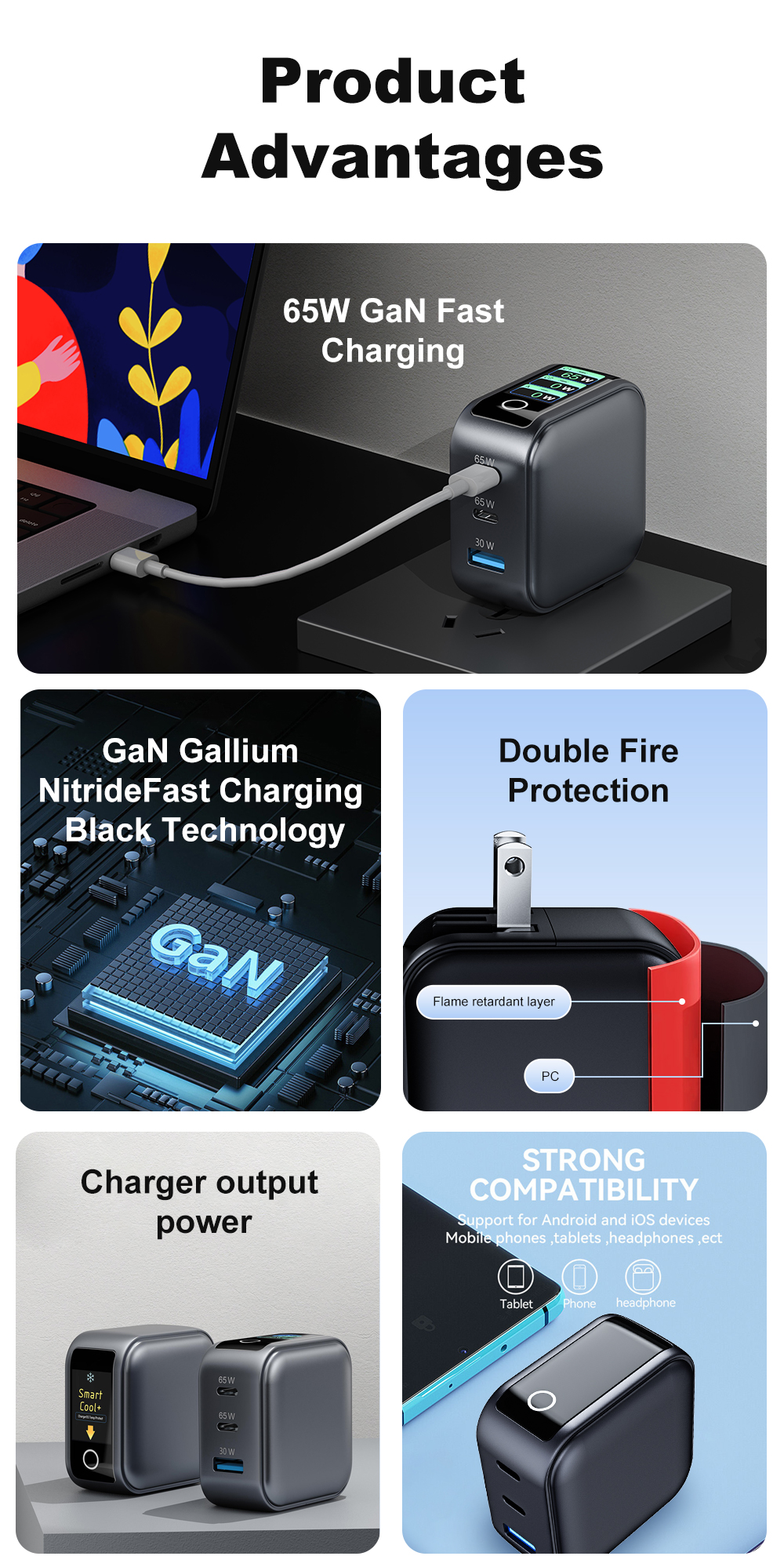

Key Features

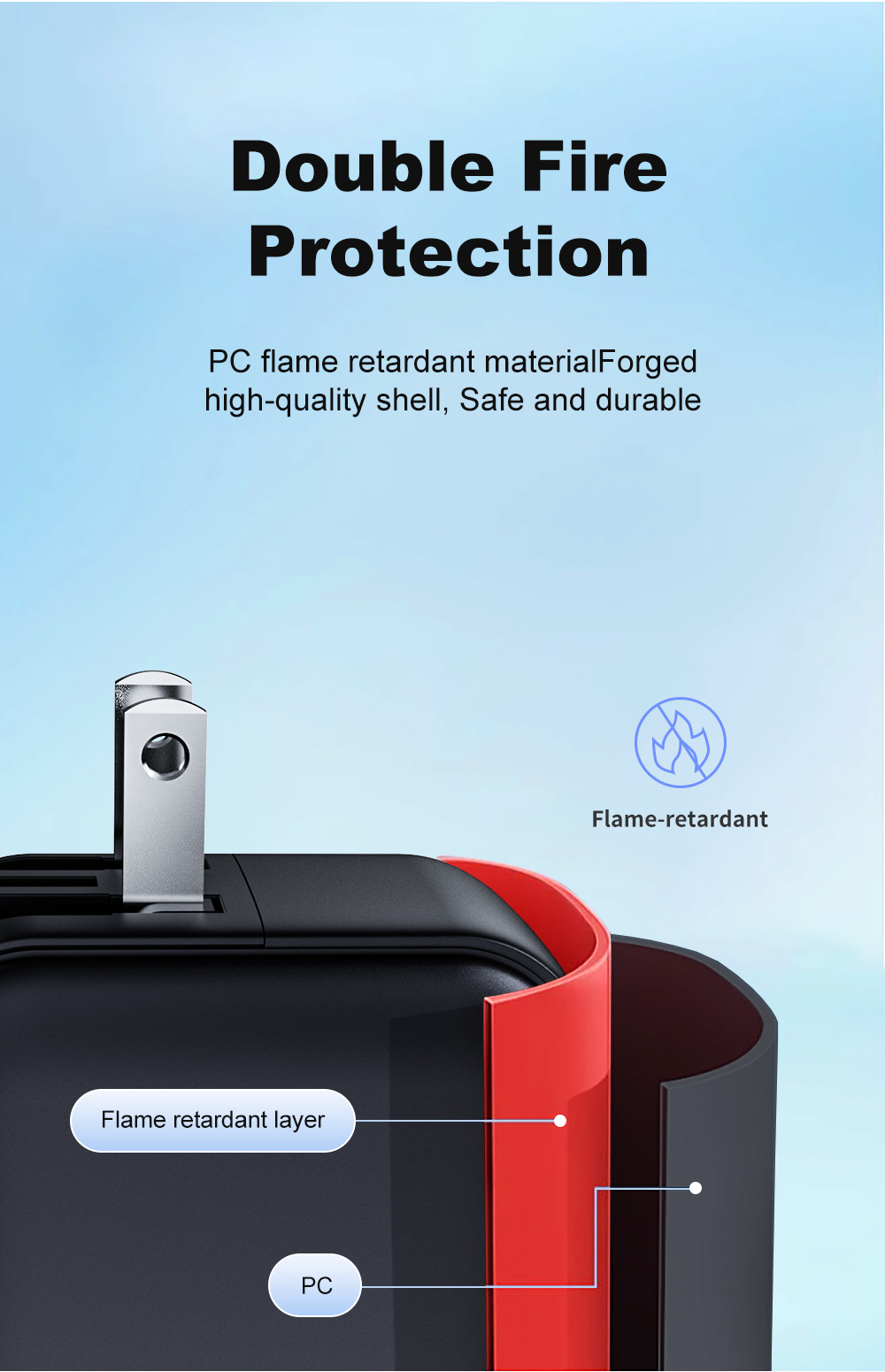

- Housing: Flame-retardant PC, 58 × 58 × 31.1 mm
- Universal AC 100–240V 50/60Hz input for worldwide SKUs
- 65W maximum output

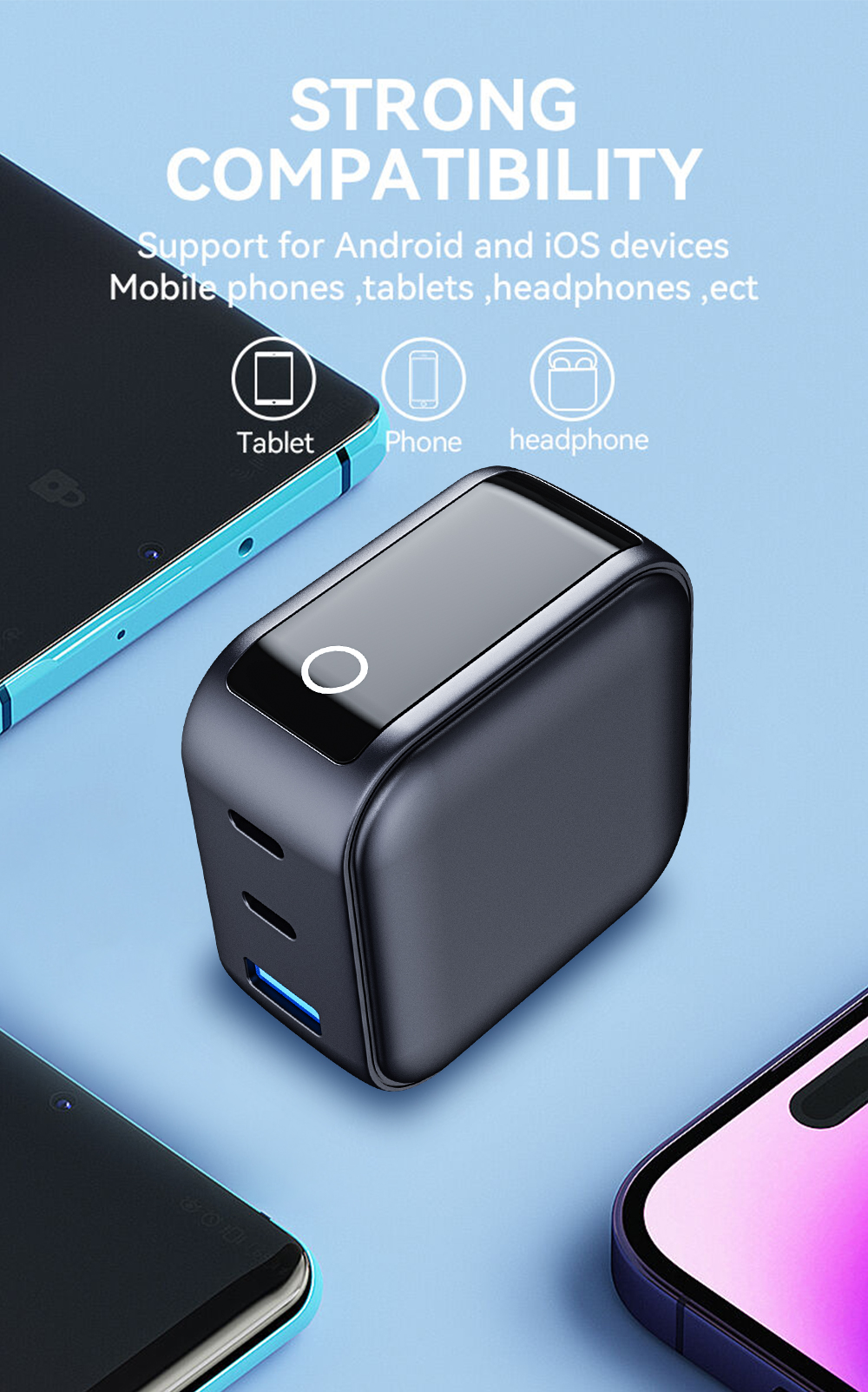

- Protocols: PD3.0 / PPS / QC3.0
- Plug options: US / EU / UK
- Port configuration: 2 × USB-C + 1 × USB-A

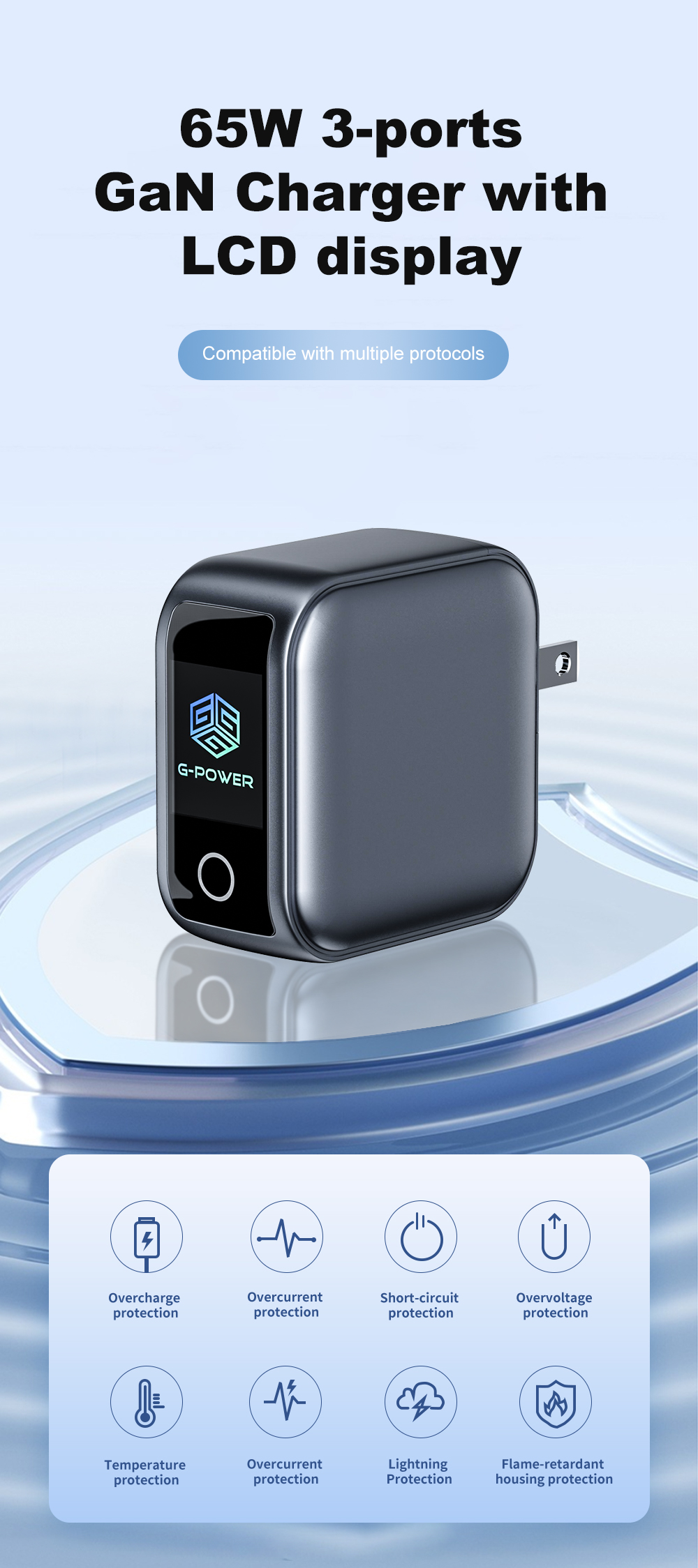

- Multi-layer protection: OVP / OCP / OTP / SCP
Applications

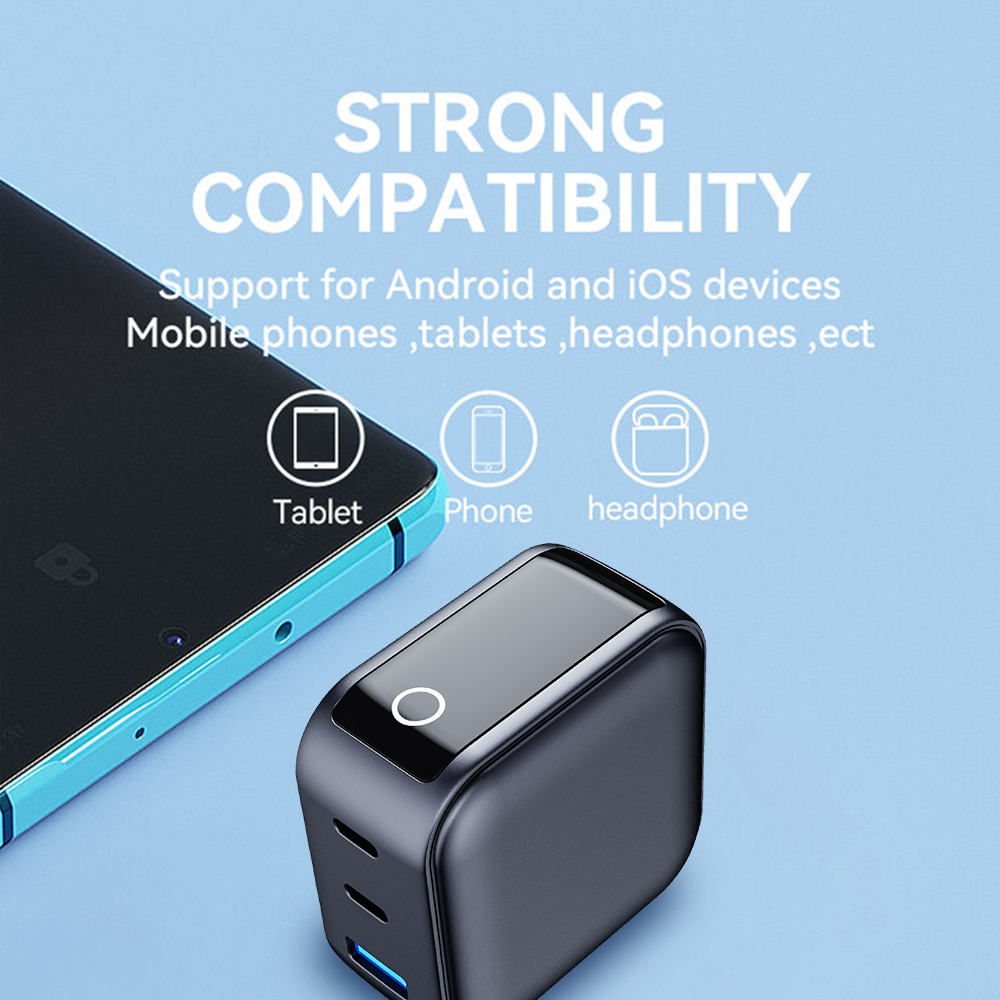

- Smartphones, tablets and USB-C laptops within the rated wattage
- International travel with US / EU / UK plug variants
- Desk charging at home and in the office
- Power banks and small portable electronics
OEM/ODM support covers logo printing, custom packaging, housing colors and plug-type variants; the standard MOQ is 3,000 pcs per model.

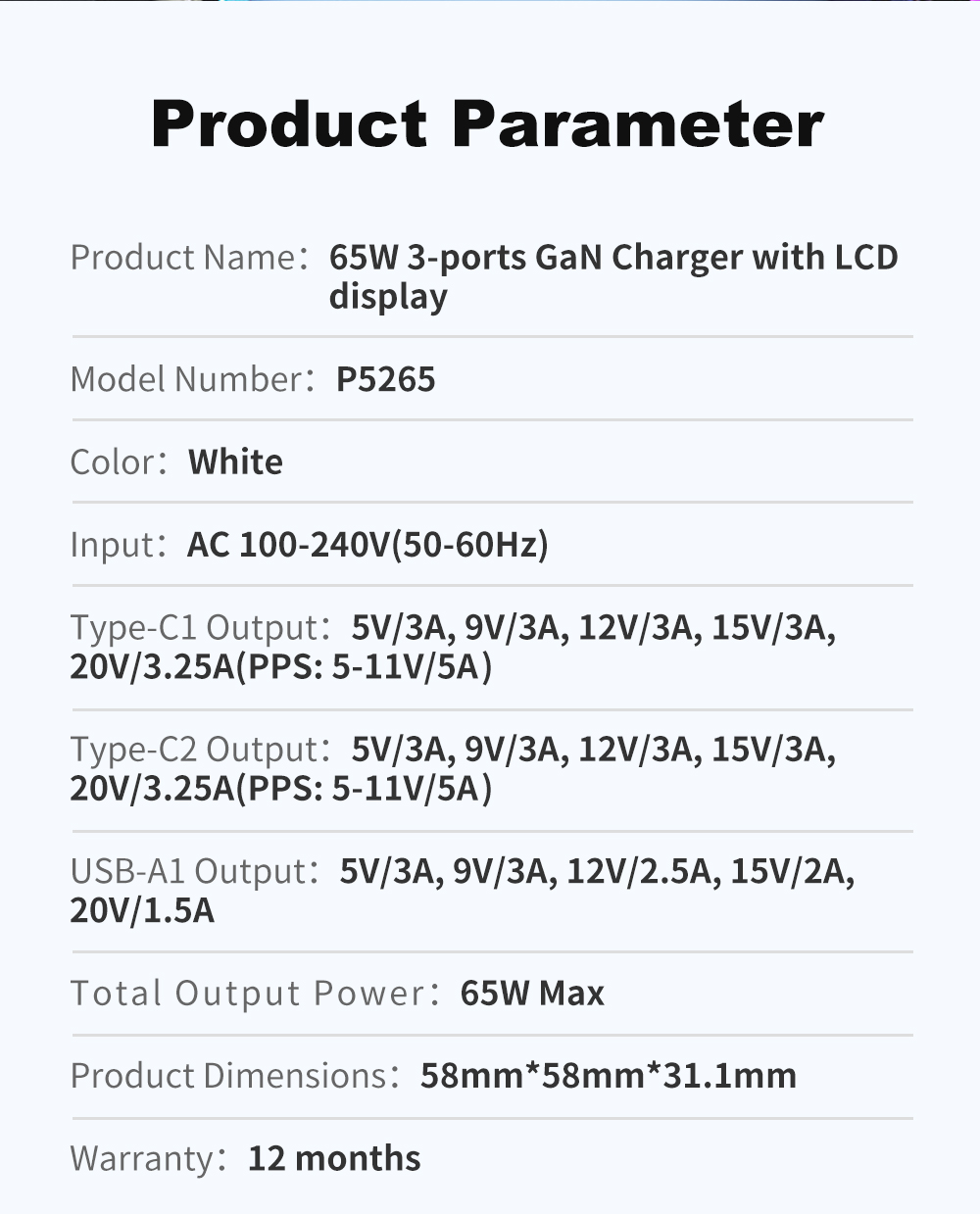

Technical Specifications
| Model No. | P5265 |
| Input | AC 100–240V, 50/60Hz |

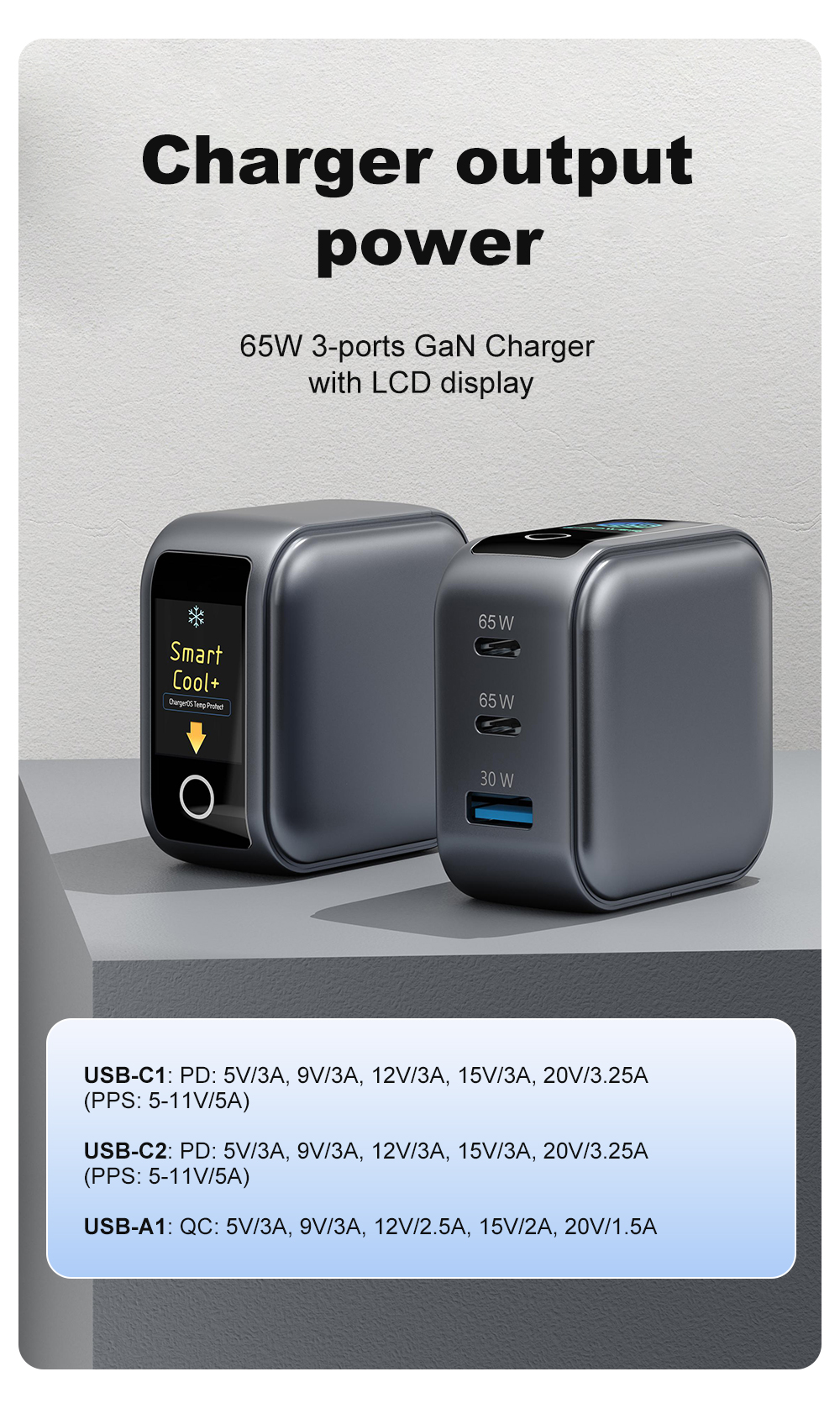

| Output | C1 / C2 (each port): 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A; PPS: 5–11V/5A USB-A QC: 5V/3A, 9V/3A, 12V/2.5A, 15V/2A, 20V/1.5A |
| Multi-Port Distribution | C1+C2: 45W+20W | C1+A: 45W+18W | C2+A: 7.5W+7.5W | All ports: 45W+7.5W+7.5W |
| Display | 1.14" LCD (real-time power) |
| Ports | 2 × USB-C + 1 × USB-A |
| Protocols | PD3.0 / PPS / QC3.0 |
| Plug Type | US / EU / UK |
| Dimensions | 58 × 58 × 31.1 mm |

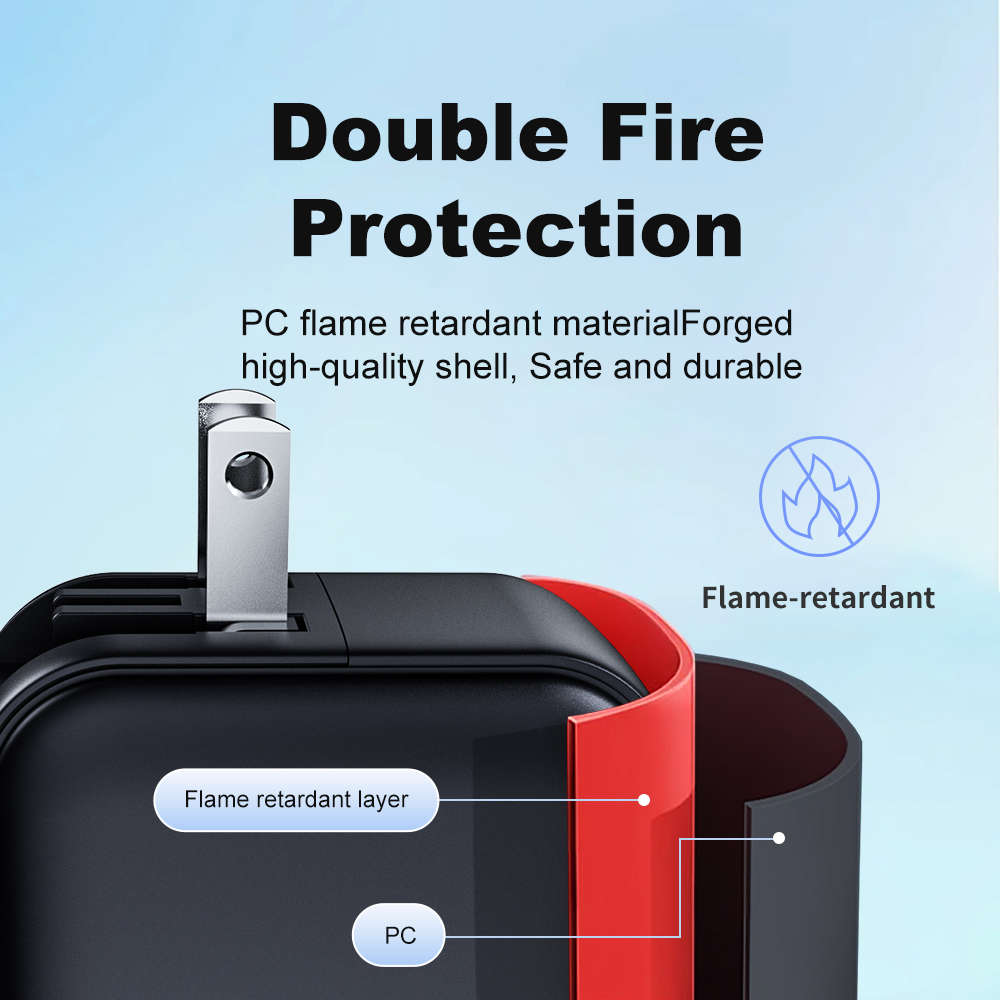

| Housing | Flame-retardant PC |
| Protection | OVP / OCP / OTP / SCP |
| Certifications | CE / UKCA / RoHS (EU) · FCC / ETL (US) · PSE (JP) · SAA / RCM (AU) · KC (KR) |
| MOQ | 3,000 pcs per model |
| OEM/ODM | Logo printing, packaging, custom panel & plug types |
